Engine Control System (Service Information)
>>
Ignition System (FA20)
>>
Circuit Figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

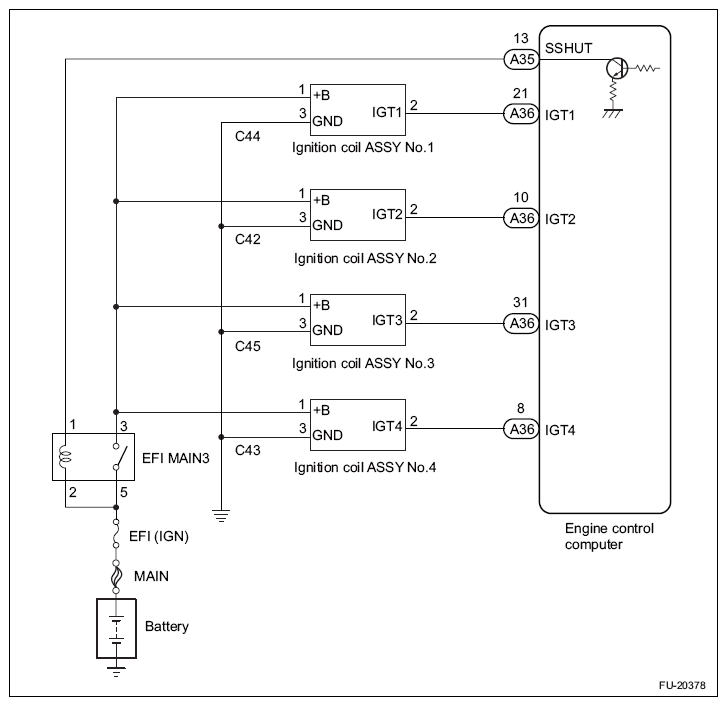

Circuit Figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
