Unit Inspection
 Courtesy of SUBARU OF AMERICA, INC.
|

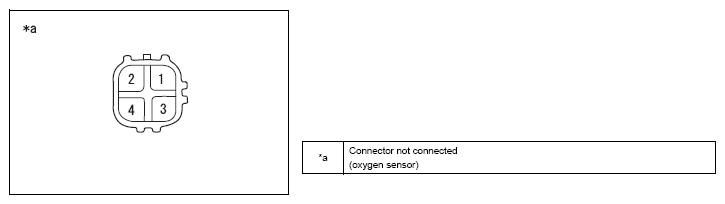

- Inspection of oxygen sensor
- Measure the resistance between the terminals.
STANDARD VALUE RESISTANCE SPECIFICATION
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
20°C {68°F} |
5.0 to 6.4 Ω |
| 1 - 4 |
Always |
10 k Ω or more |
