Unit Inspection
 Courtesy of SUBARU OF AMERICA, INC.
|

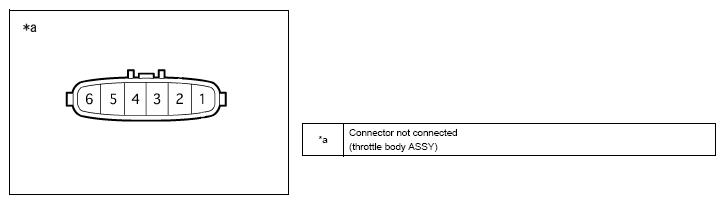

- Throttle body ASSY (with motor) check
- Measure the resistance between the terminals.
STANDARD VALUE RESISTANCE SPECIFICATION
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
20°C {68°F} |
0.3 to 10 Ω |
