Parts location

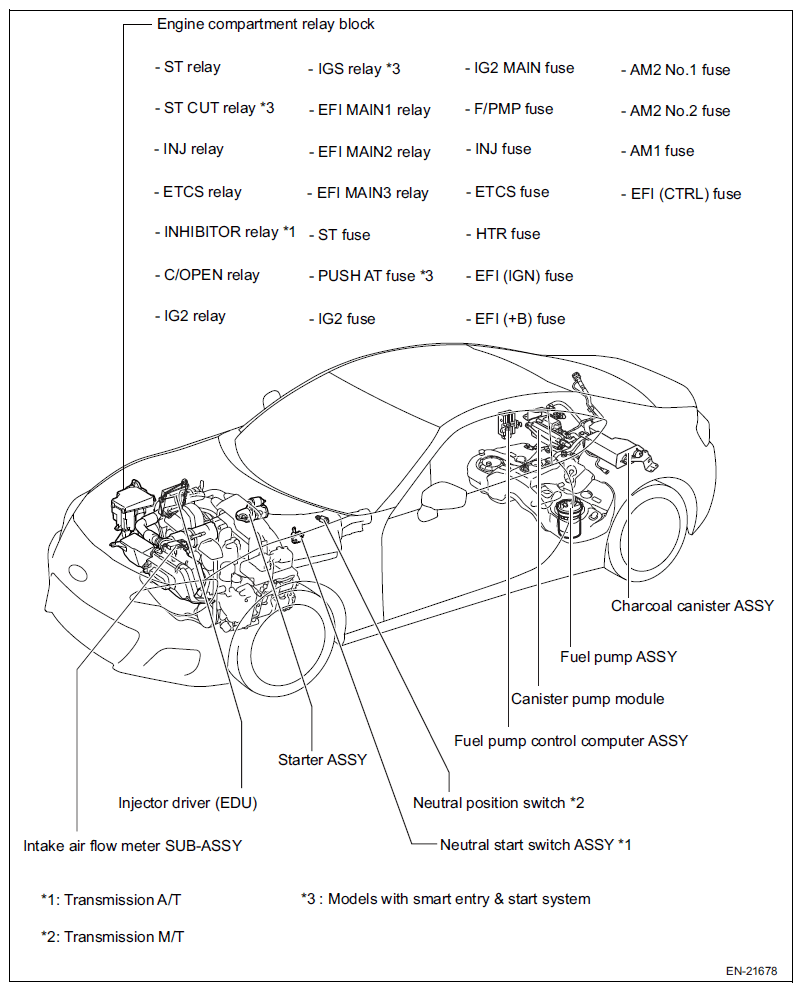

G11258056Courtesy of SUBARU OF AMERICA, INC.

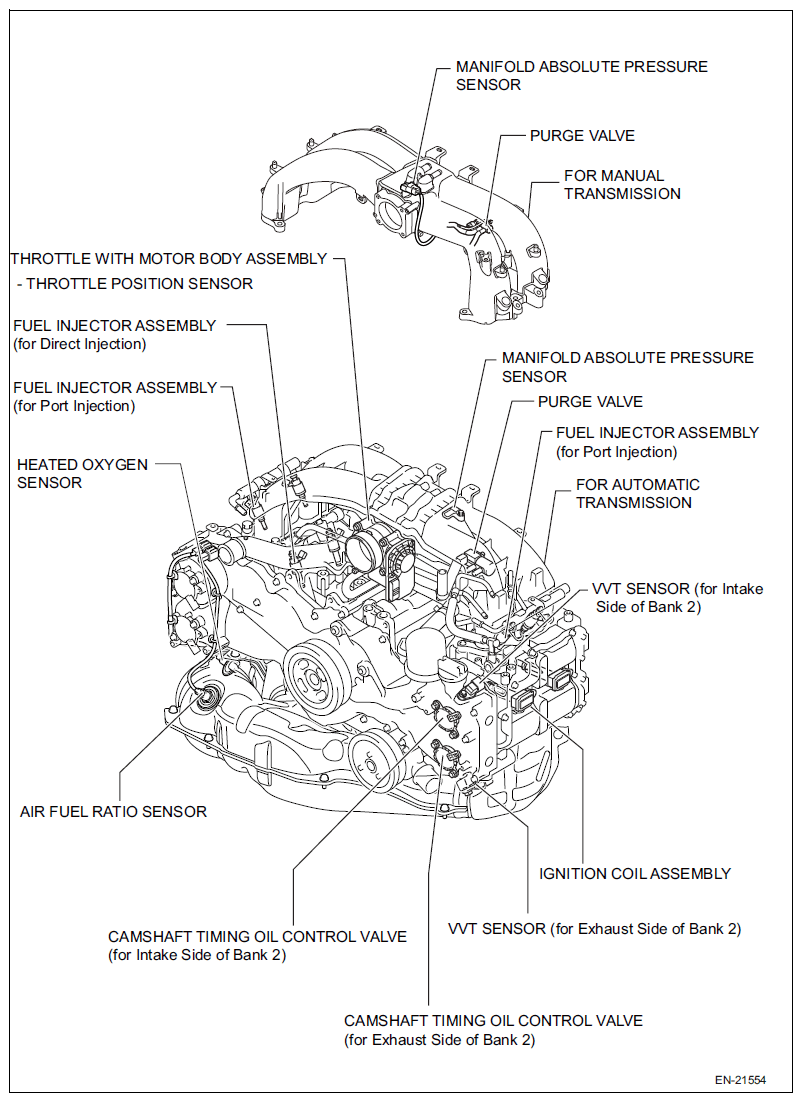

G11258057Courtesy of SUBARU OF AMERICA, INC.

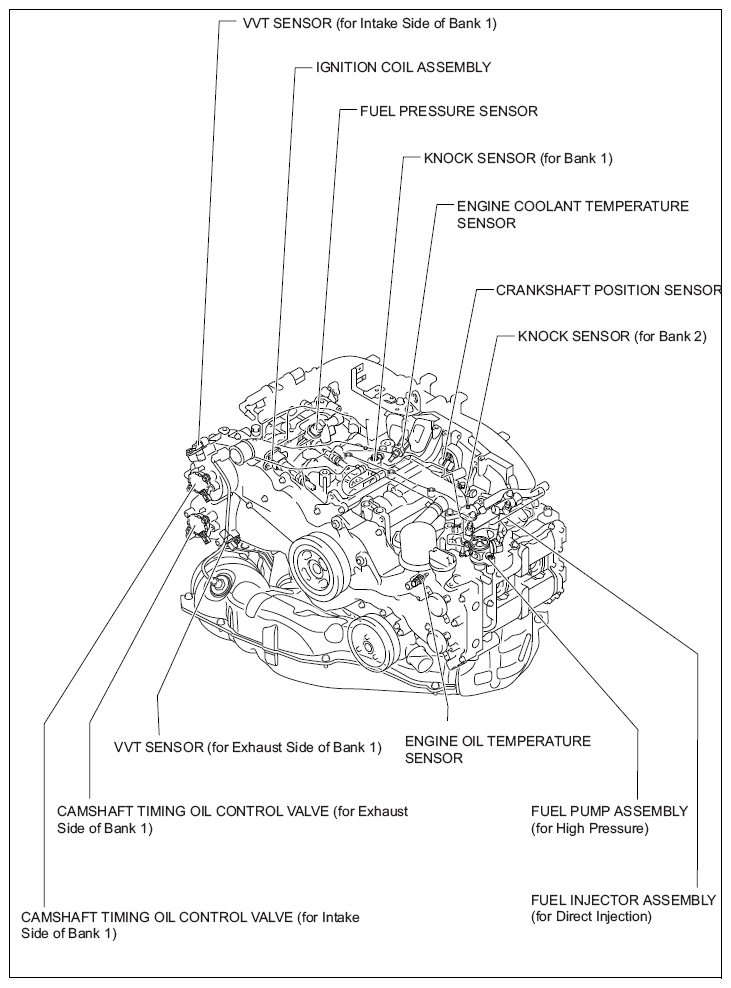

G12586102Courtesy of SUBARU OF AMERICA, INC.
G10212729Courtesy of SUBARU OF AMERICA, INC.
