BRZ Limited, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Suspension
>>
Rear Suspension System
>>
Toe Control Link
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

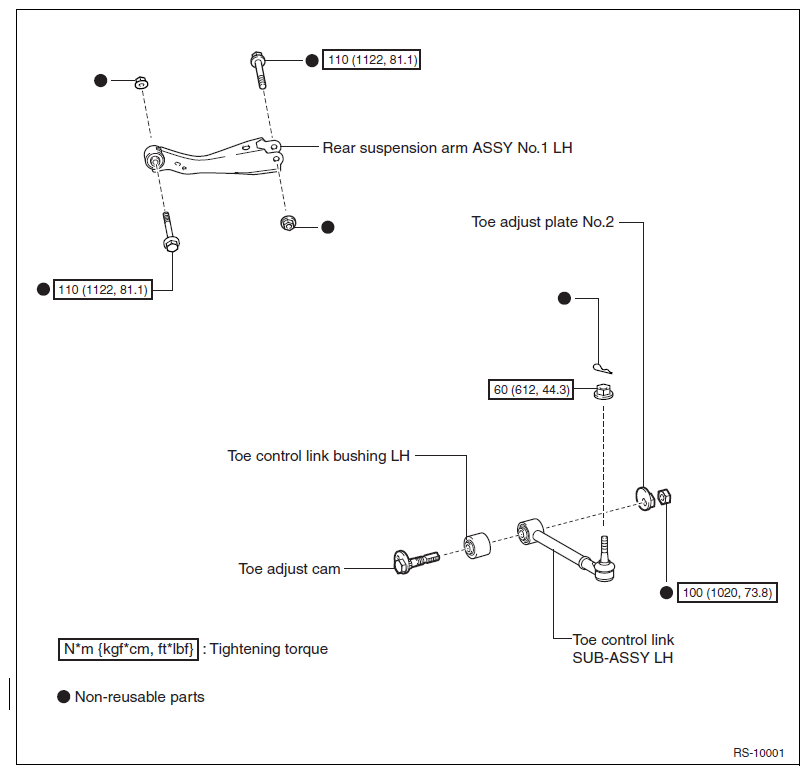

Fig 1: Toe Control Link Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
