Exploded View

G12586395Courtesy of SUBARU OF AMERICA, INC.

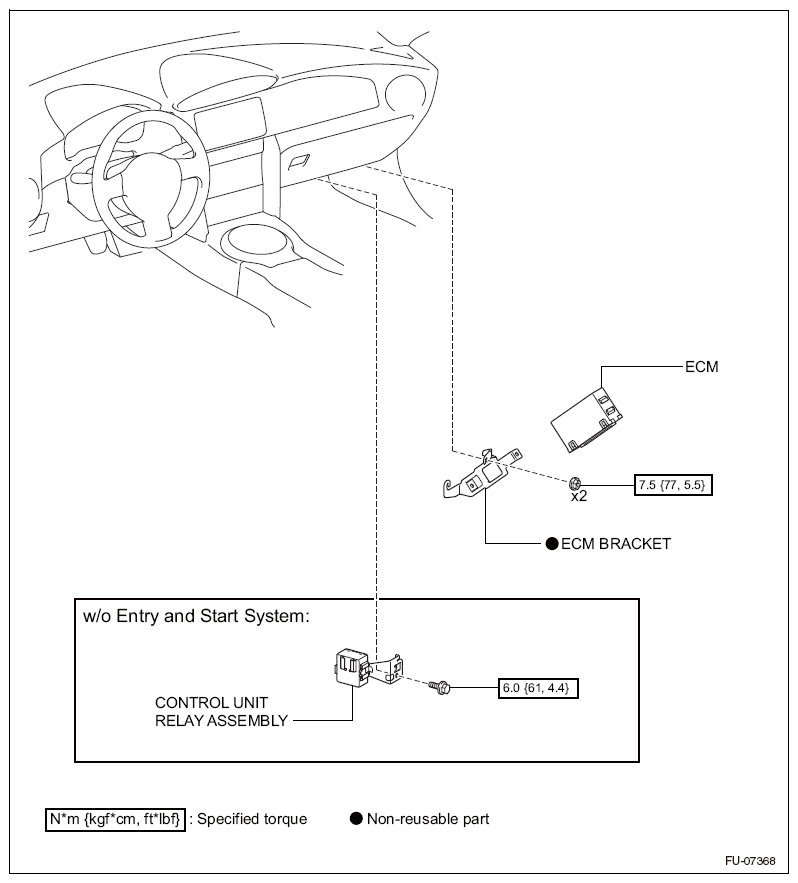

Fig 1: Engine Control Computer (FA20) Components With Torque Specification
G08553997Courtesy of SUBARU OF AMERICA, INC.
