Knock Control Sensor (FA20): Installation
- Installation of knock control sensor

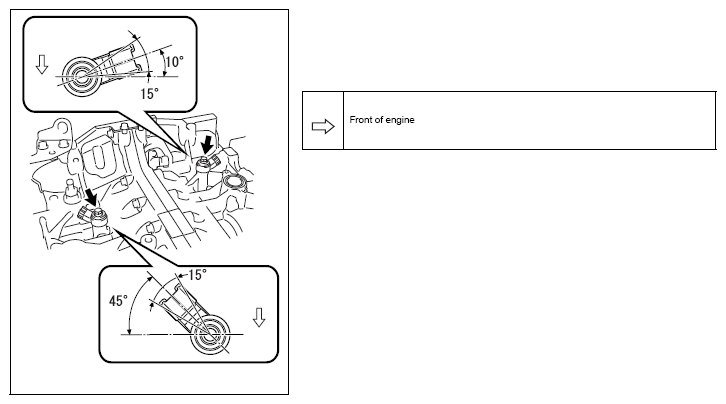

- Using 2 bolts, install the knock control sensor in the direction shown in the figure.
Standard value: T=24N.m {245kgf.cm} {17.7ft.lbf}
- Connect 2 connectors for knock control sensor.
- Using 2 bolts, install the knock control sensor in the direction shown in the figure.
- Installation of intake manifold (Refer to INSTALLATION )
- Connection of the battery ground terminal
Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
