Circuit Figure

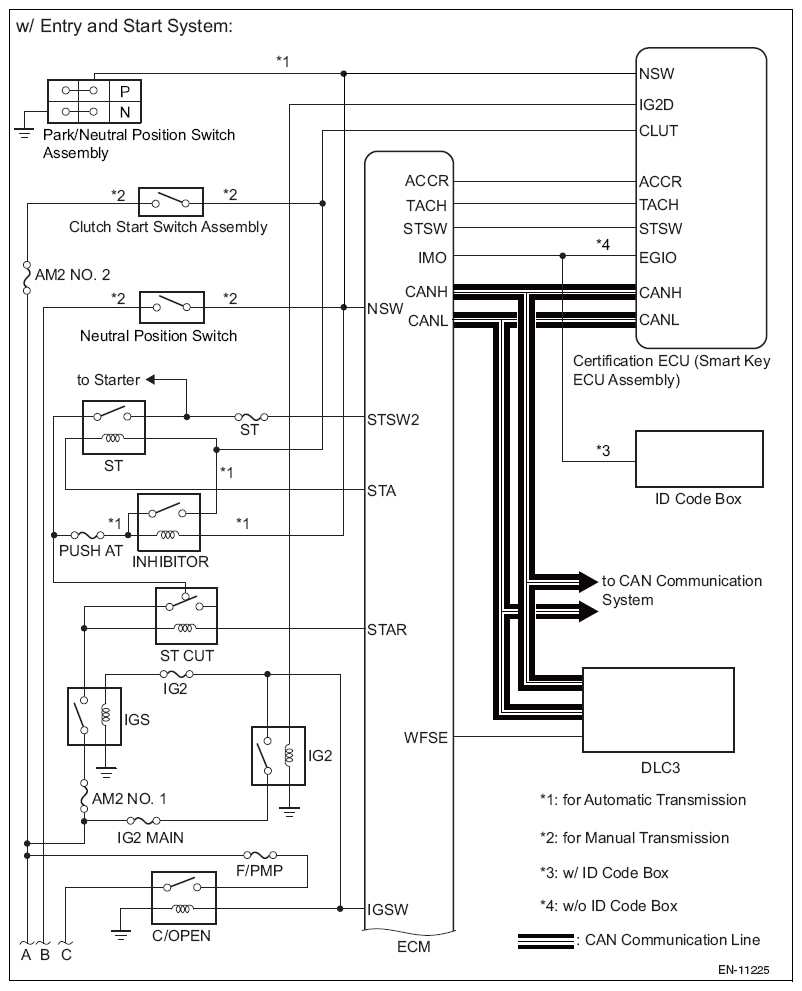

G10212731Courtesy of SUBARU OF AMERICA, INC.

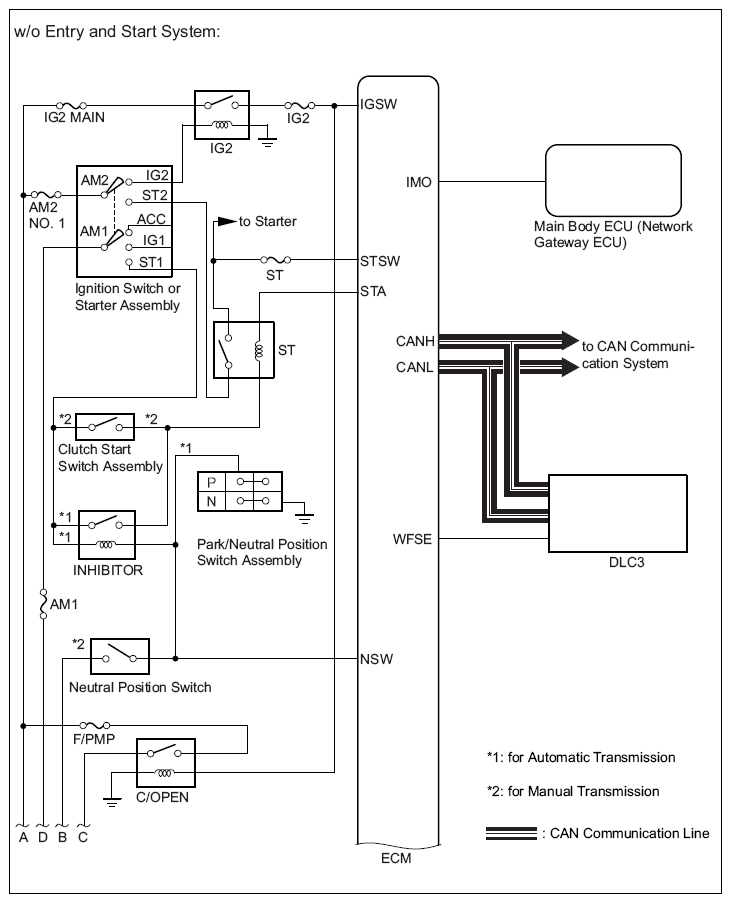

G12586106Courtesy of SUBARU OF AMERICA, INC.

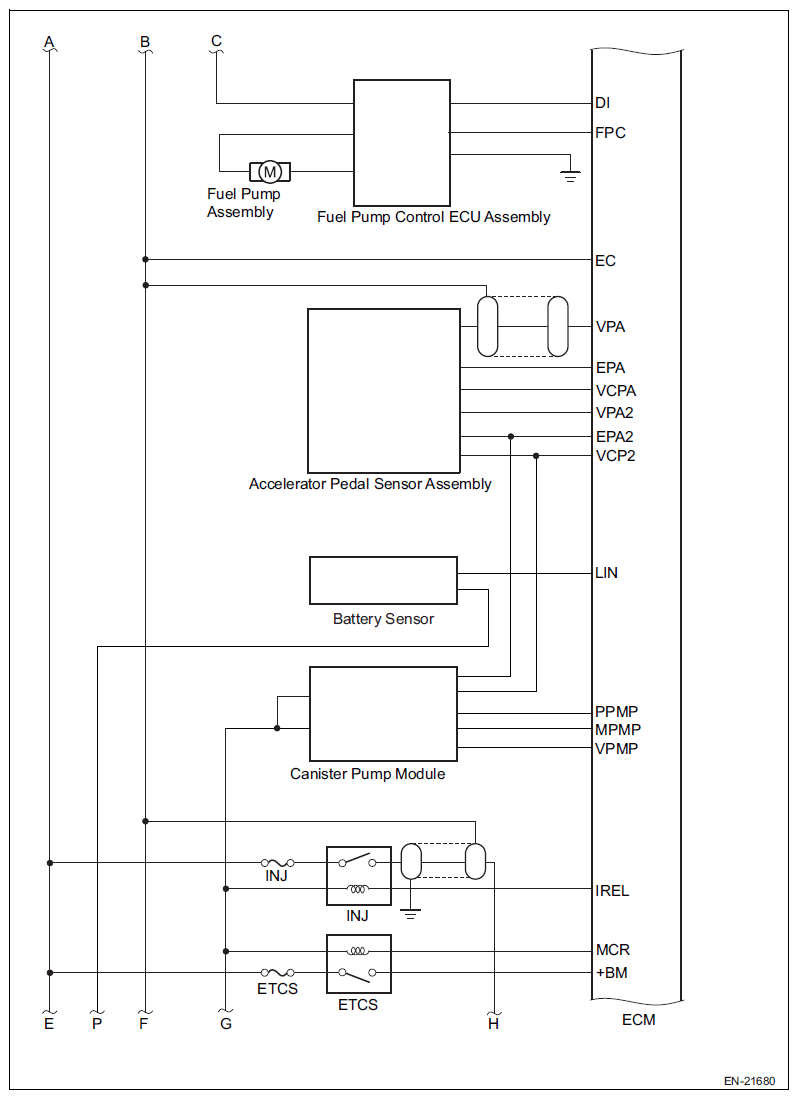

G11258063Courtesy of SUBARU OF AMERICA, INC.

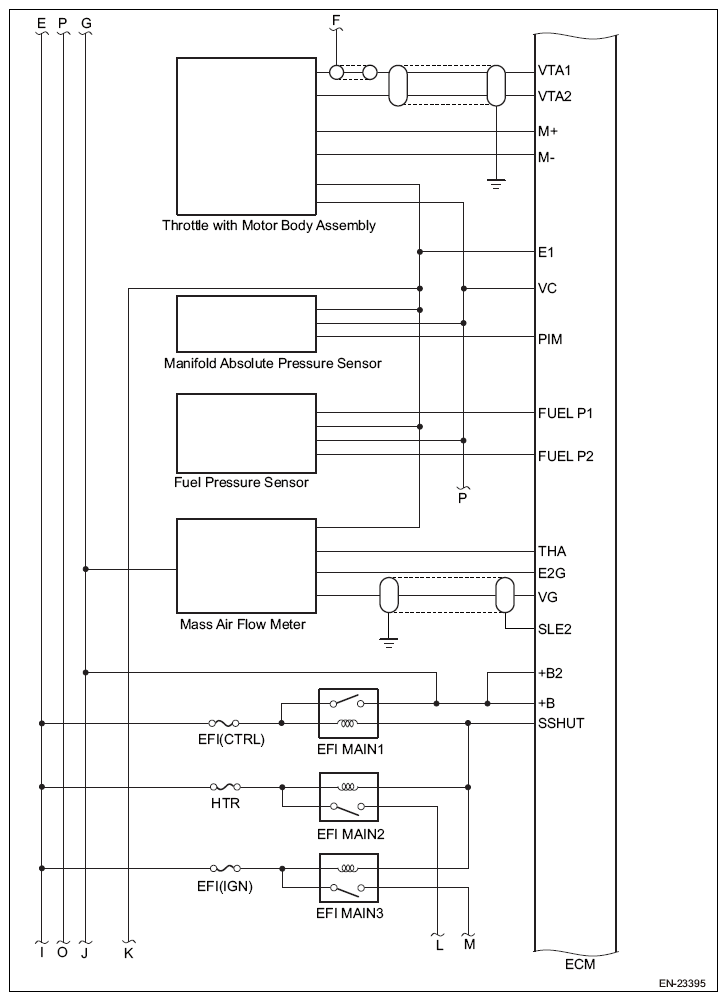

G12586108Courtesy of SUBARU OF AMERICA, INC.

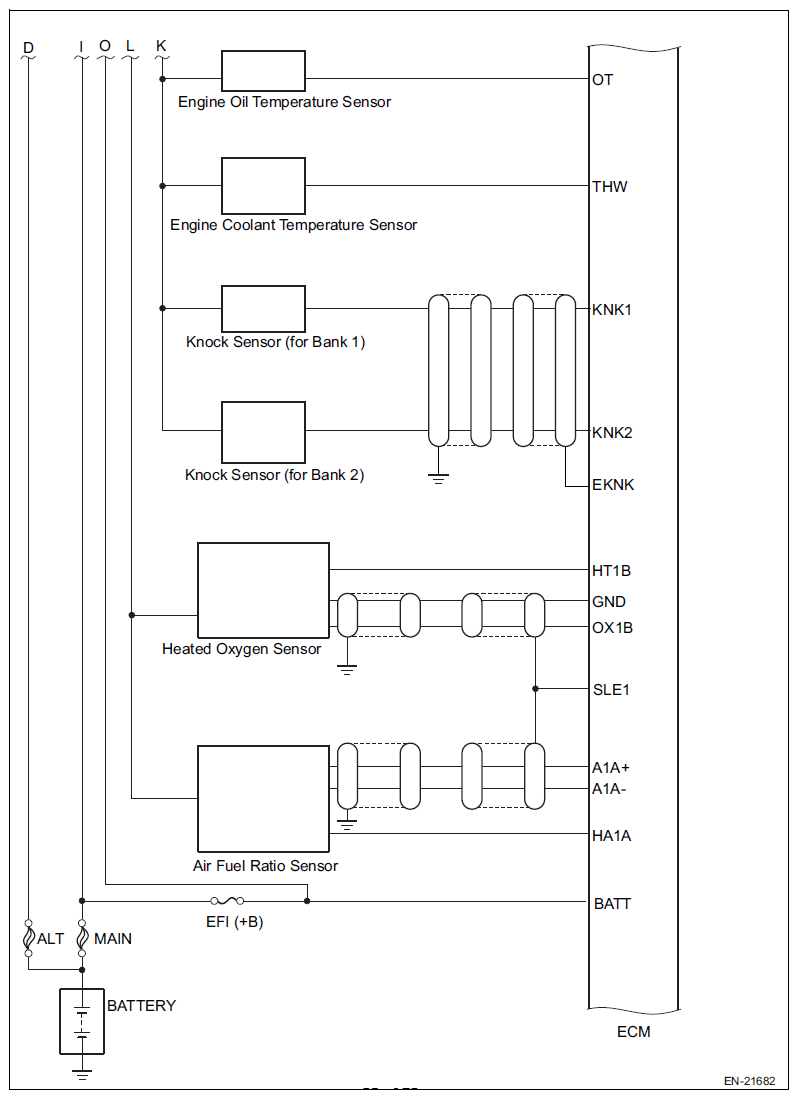

G11258065Courtesy of SUBARU OF AMERICA, INC.

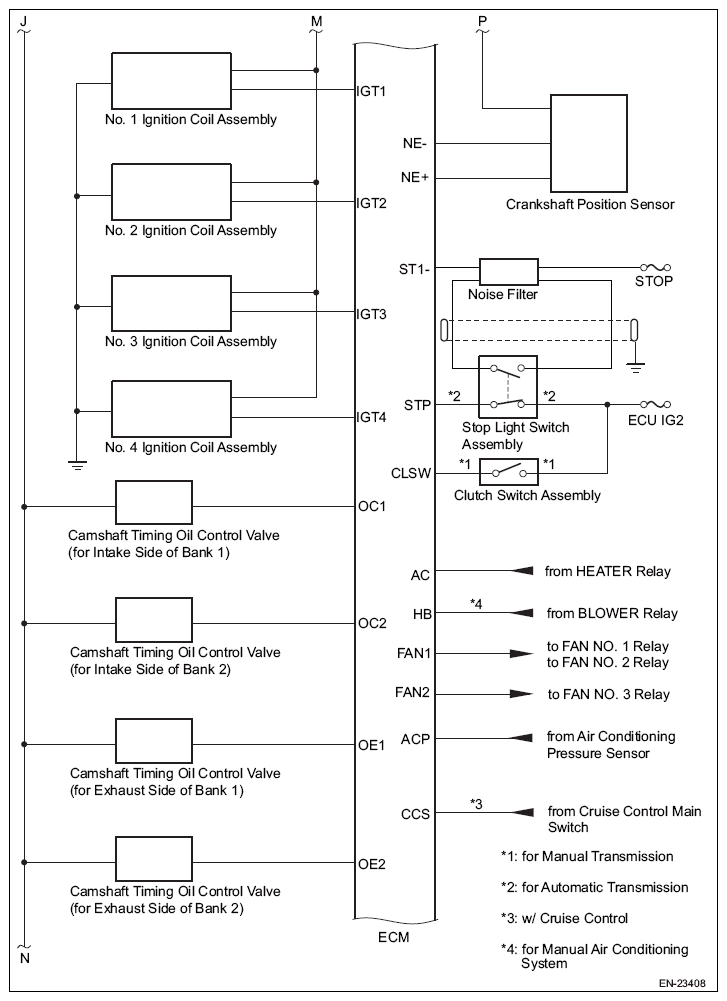

G12586110Courtesy of SUBARU OF AMERICA, INC.

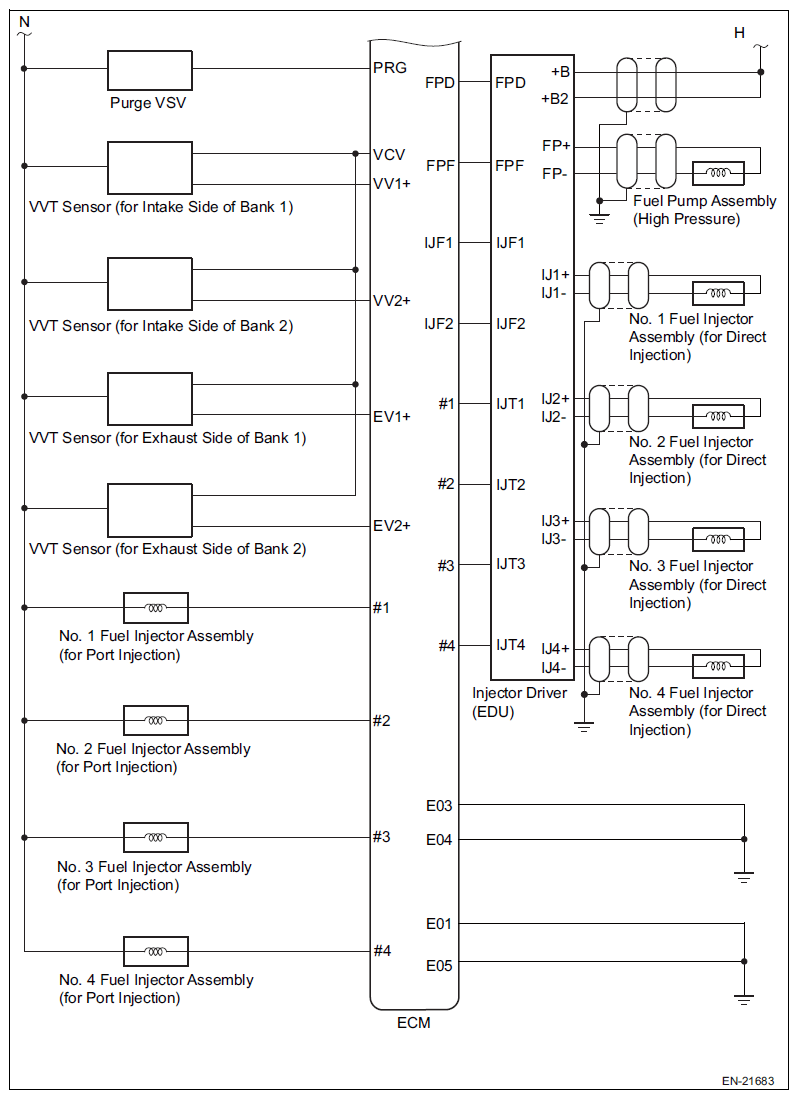

G11258067Courtesy of SUBARU OF AMERICA, INC.
