Fuel Filter: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel.
  • If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.
  • Be careful not to drop or apply any impact to the fuel pump during work. This may deteriorate its performance.
NOTE: The fuel filter is built in fuel pump assembly.
  1. Remove the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump>REMOVAL .
  2. Remove the fuel level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Level Sensor>REMOVAL .

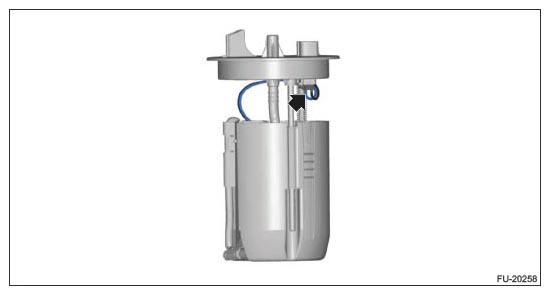

  3. Disconnect the connector cable.
    G11252963Courtesy of SUBARU OF AMERICA, INC.

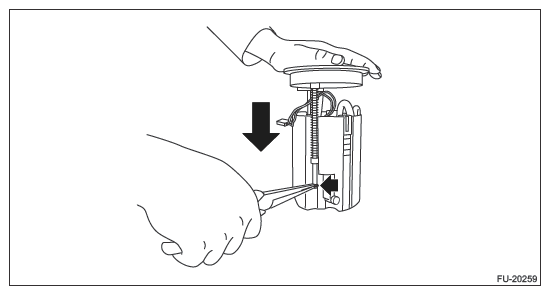

  4. Push the fuel filter assembly in the direction of the arrow to compress, and detach the connecting clip.
    G11252964Courtesy of SUBARU OF AMERICA, INC.

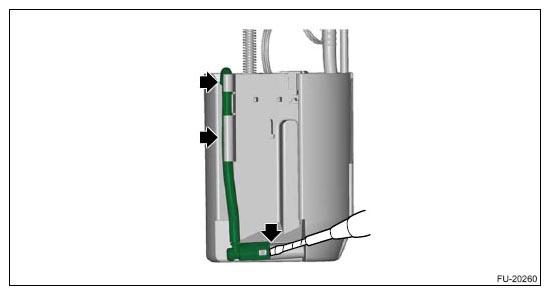

  5. Release the claw using a flat tip screwdriver or similar tool wrapped with a protection tape, and remove the tube assembly from the fuel chamber assembly.
    G11252965Courtesy of SUBARU OF AMERICA, INC.

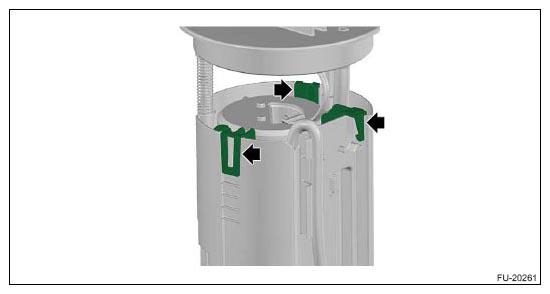

  6. Disengage three claws on the fuel pump holder from the fuel chamber assembly, and remove the fuel filter assembly.
    G11252966Courtesy of SUBARU OF AMERICA, INC.

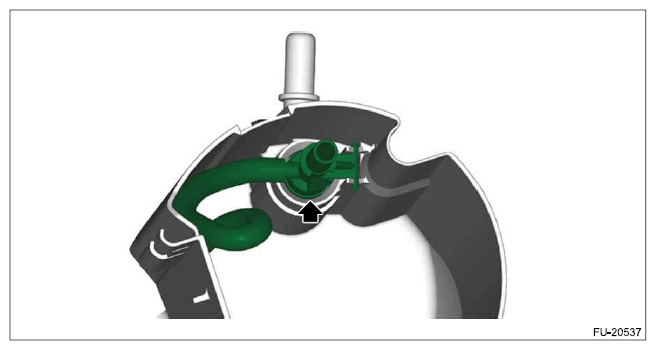

  7. Remove the tube assembly from the fuel chamber assembly. (Crosstrek model)
    G12391612Courtesy of SUBARU OF AMERICA, INC.

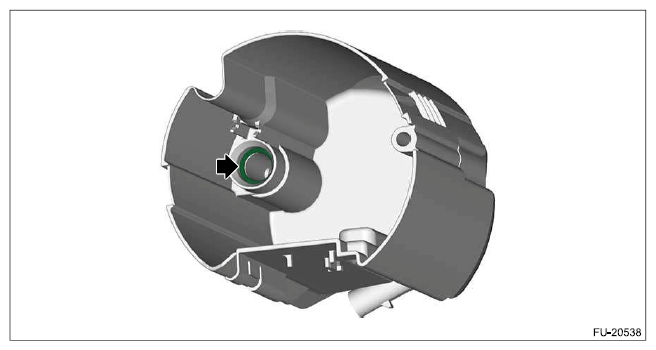

  8. Remove the O-ring from the fuel chamber assembly. (Crosstrek model)
    G12391613Courtesy of SUBARU OF AMERICA, INC.

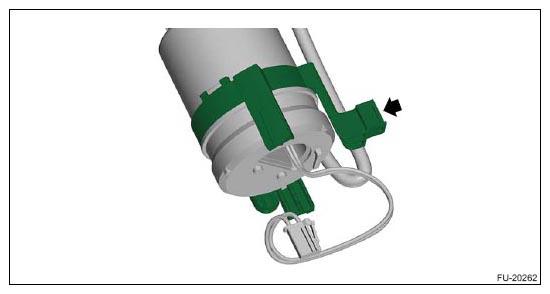

  9. Remove the fuel pump holder.
    G11252967Courtesy of SUBARU OF AMERICA, INC.

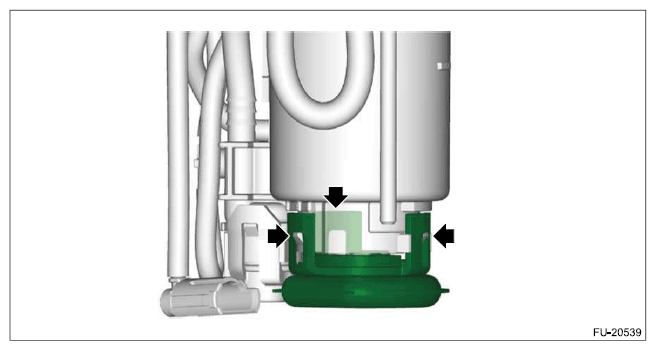

  10. Disengage three claws on the fuel pump.
    G12391615Courtesy of SUBARU OF AMERICA, INC.

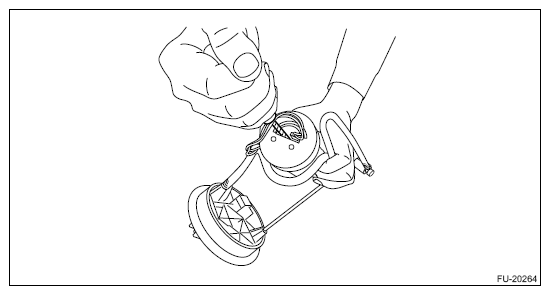

  11. Using a flat tip screwdriver or similar tool wrapped with a protection tape, press on the fuel pump and remove the fuel pump from the fuel filter assembly.
    CAUTION: If O-rings remain on the fuel filter assembly side, they must be carefully removed using a precision screwdriver or similar tool wrapped with a protection tape.
    G11252969Courtesy of SUBARU OF AMERICA, INC.

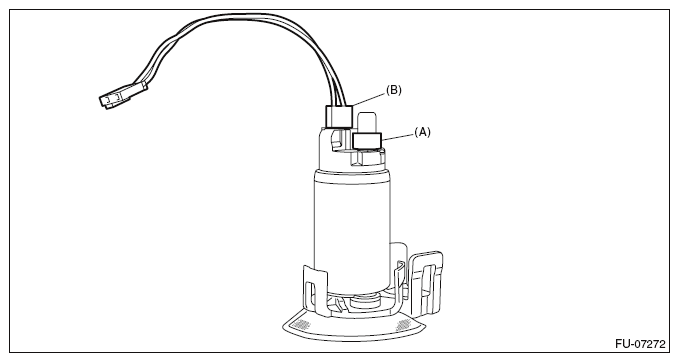

  12. Remove the spacer (A) and connector cable (B) from the fuel pump.
    G09475688Courtesy of SUBARU OF AMERICA, INC.

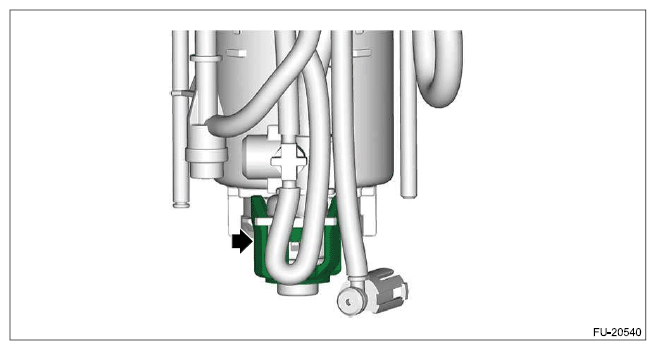

  13. Remove the pressure regulator cap.
    G12391618Courtesy of SUBARU OF AMERICA, INC.

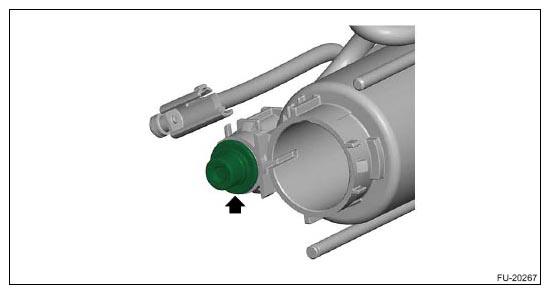

  14. Remove the pressure regulator from the fuel filter assembly.
    G11252972Courtesy of SUBARU OF AMERICA, INC.

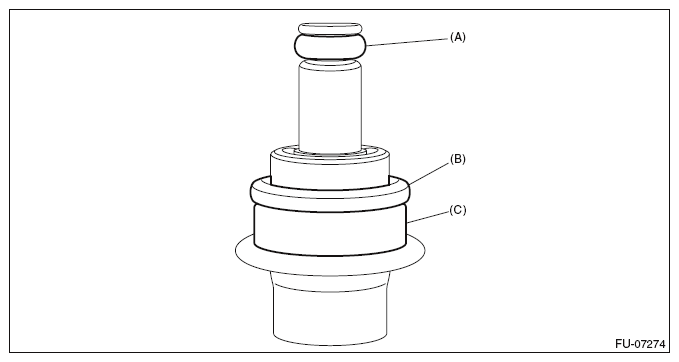

  15. Remove O-ring (A), O-ring (B), and backup ring (C) from the pressure regulator.
    G09475690Courtesy of SUBARU OF AMERICA, INC.
