Fuel Delivery and Evaporation Lines: Installation: Notes

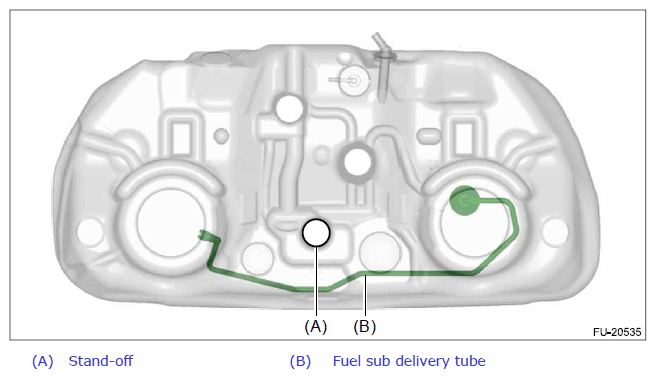

  1. Install the fuel sub delivery tube. (Crosstrek model)
    1. Set the fuel sub delivery tube to the fuel tank.
      NOTE:
      • Route the fuel sub delivery tube in front of the stand-off as shown in the figure.
      • Check the fuel sub delivery tube to make sure it's not twisted.
      G12391654Courtesy of SUBARU OF AMERICA, INC.
    2. Install the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Sub Level Sensor>INSTALLATION .
    3. Install the fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump>INSTALLATION .

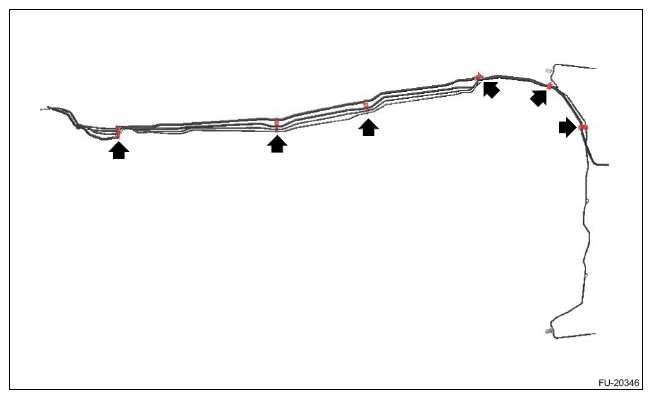

  2. Install the fuel pipe assembly to the pipe clamp.
    G11252993Courtesy of SUBARU OF AMERICA, INC.
  3. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket B and fuel pipe bracket C.

    Tightening torque:

    18 N.m (1.8kgf-m, 13.3ft-lb)

    G11252992Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the brake pipes. Ref. to BRAKE>Brake Hose>INSTALLATION>REAR BRAKE HOSE Ref. to BRAKE>Brake Pipe>INSTALLATION>CENTER AND REAR BRAKE PIPE .
  5. Install the floor under protector RH. Ref. to EXTERIOR/INTERIOR TRIM>Floor Under Protector>INSTALLATION .
  6. Connect the purge tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .
    G11252991Courtesy of SUBARU OF AMERICA, INC.
  7. Connect individual tubes and hoses to the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>General Description>COMPONENT>FUEL TANK .
    • For information about connecting fuel delivery tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .
    • For information about connecting the circulate tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .
    • For information about connecting the vent tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F)  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE H) .
    • For information about connecting fuel filler hose, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>FUEL FILLER HOSE CONNECTION .
  8. Install the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank>INSTALLATION .
  9. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket A.

    Tightening torque:

    18 N.m (1.8kgf-m, 13.3ft-lb)

    G11252990Courtesy of SUBARU OF AMERICA, INC.
  10. Lower the vehicle.
  11. Install the connector to the fuel pipe bracket A.
    G11252989Courtesy of SUBARU OF AMERICA, INC.

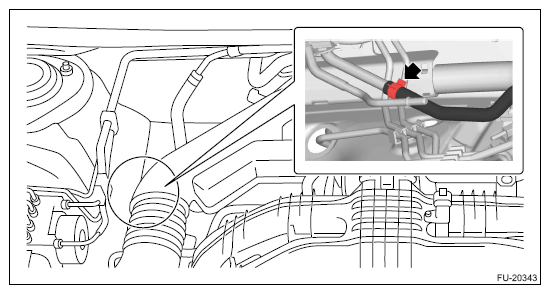

  12. Connect the evaporation hose to fuel pipe assembly.
    G11252988Courtesy of SUBARU OF AMERICA, INC.

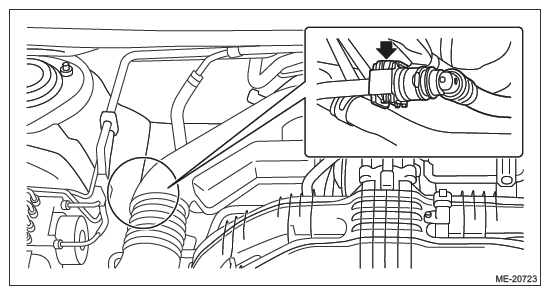

  13. Connect the quick connector on the fuel delivery tube to the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
    G11252921Courtesy of SUBARU OF AMERICA, INC.

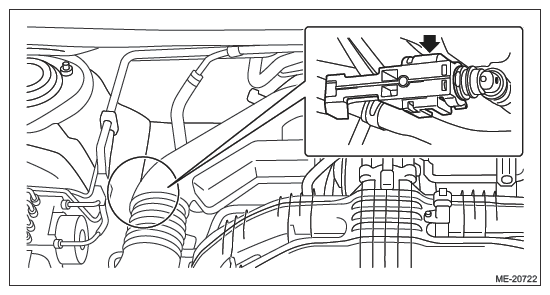

  14. Install the fuel delivery tube clamp to the fuel delivery tube.
    G11252920Courtesy of SUBARU OF AMERICA, INC.
