Fuel Sub Level Sensor: Inspection

  1. Check that the fuel sub level sensor has no damage.

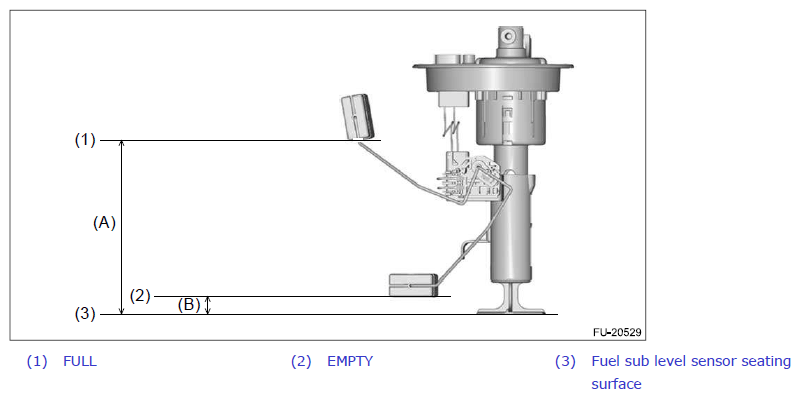

  2. Check the fuel sub level sensor float position.
    G12391606Courtesy of SUBARU OF AMERICA, INC.
    Float position Standard
    FULL-Fuel sub level sensor seating surface (A) 145.1±4.5 mm (5.713±0.177in)
    EMPTY-Fuel sub level sensor seating surface (B) 14.6±4.5 mm (0.575±0.177in)
  3. Check the resistance between fuel sub level sensor terminals by the connector on top of the fuel sub level sensor.
    G12391607Courtesy of SUBARU OF AMERICA, INC.
    Float position Terminal No. Standard
    FULL (A) 1 and 2 8.7±1.0 Ω
    EMPTY (B) 176.6±2.0 Ω
