Engine Wiring Harness: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .
  3. Remove the fuel insulator. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Insulator>REMOVAL .
  4. Remove the engine wiring harness and the battery cables from the bracket.

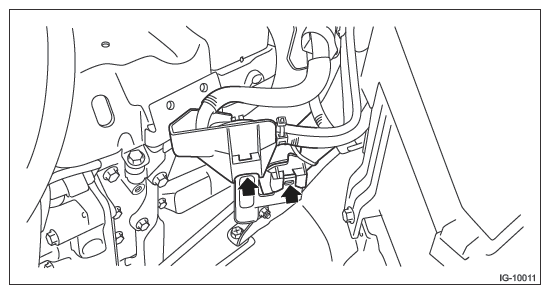

    G11252868Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect each connector to remove the engine wiring harness. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>General Description>COMPONENT>ENGINE WIRING HARNESS .
    NOTE:
    • For the variable capacity A/C model, disconnect the fuel injector #2 connector at the coupling harness side, and then remove the tape (a).

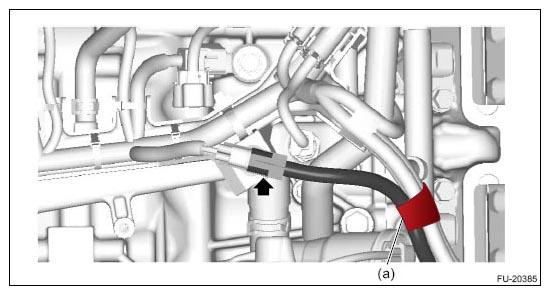

      G11252813Courtesy of SUBARU OF AMERICA, INC.
    • For removal of the coupling harness for variable capacity A/C model, refer to "Fuel Injector". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Injector>REMOVAL>FUEL INJECTOR LH .
