Fuel Injector LH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  5. Remove the high-pressure fuel delivery pipes. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE .
  6. Remove the fuel injector. (Except for variable capacity A/C model)

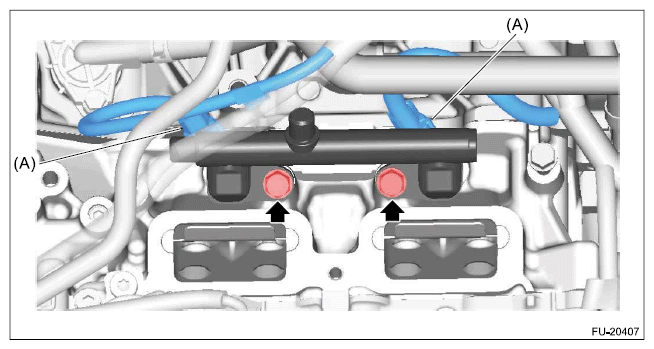

    1. Disconnect the connectors (A) from fuel injector.
    2. Remove the bolts securing the fuel injector pipe LH, and remove the fuel injector and the fuel injector pipe LH as an assembly.
      G12391387Courtesy of SUBARU OF AMERICA, INC.

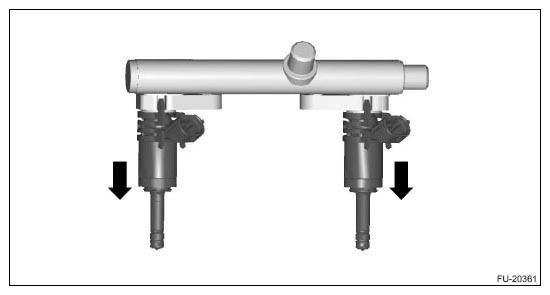

    3. Remove the fuel injectors from the fuel injector pipe LH.
      G11252815Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the fuel injector. (Variable capacity A/C model)
    1. Disconnect the coupling harness from the engine wiring harness, and remove the tape (a).
      G11252813Courtesy of SUBARU OF AMERICA, INC.

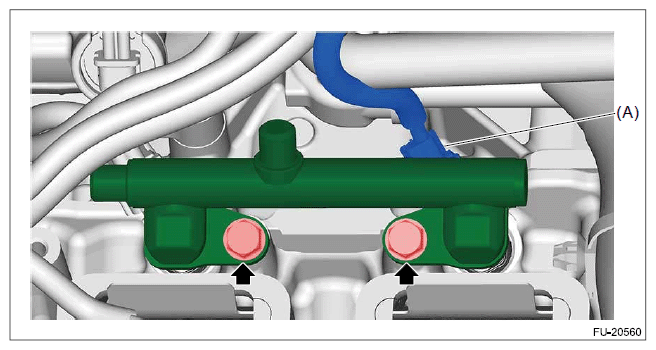

    2. Disconnect the connectors (A) from fuel injector.
    3. Remove the bolts securing the fuel injector pipe LH, and remove the fuel injector and the fuel injector pipe LH as an assembly.
      G12391390Courtesy of SUBARU OF AMERICA, INC.

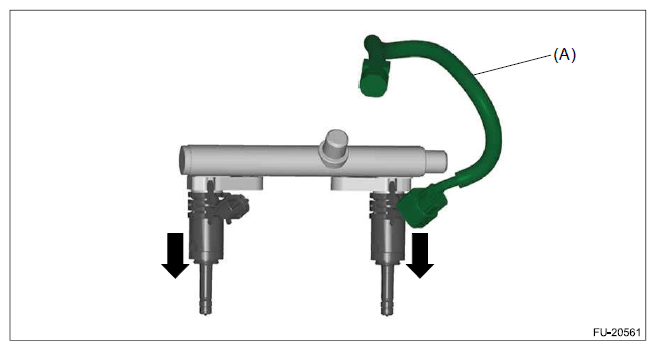

    4. Disconnect the coupling harness (A) from the fuel injector.
    5. Remove the fuel injectors from the fuel injector pipe LH.
      G12391391Courtesy of SUBARU OF AMERICA, INC.
