Fuel Injector RH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .

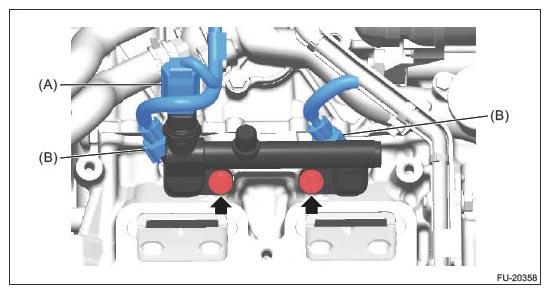

  5. Disconnect the connector (A) from the fuel pressure sensor, and disconnect the connector (B) from the fuel injector.
  6. Remove the bolts securing the fuel injector pipe RH, and remove the fuel injector and the fuel injector pipe RH as an assembly.
    G11252811Courtesy of SUBARU OF AMERICA, INC.

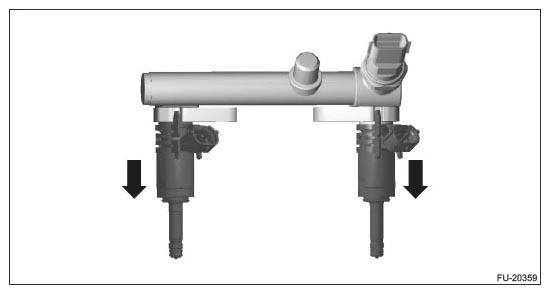

  7. Remove the fuel injectors from the fuel injector pipe RH.
    G11252812Courtesy of SUBARU OF AMERICA, INC.
