Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

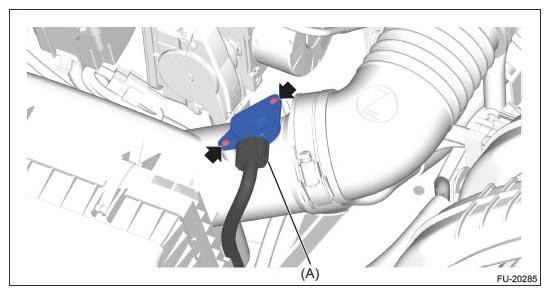

  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.
    G11252900Courtesy of SUBARU OF AMERICA, INC.
