Engine Control Module (ECM): Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

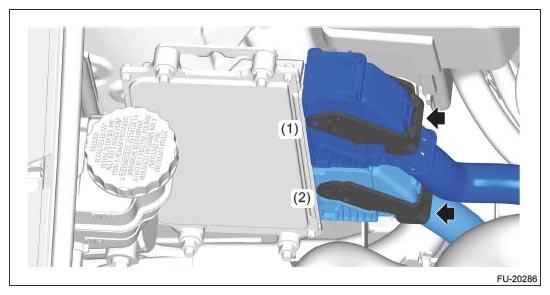

  2. Disconnect the connector in numerical order as shown in the figure.
    G11252779Courtesy of SUBARU OF AMERICA, INC.

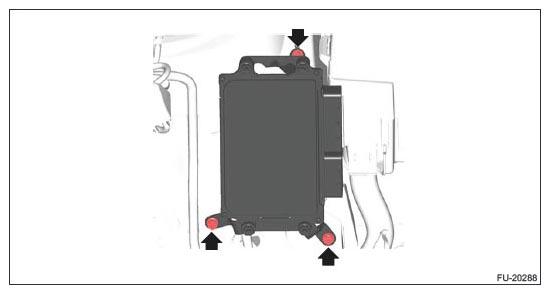

  3. Remove the ECM from vehicle.
    G11252912Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ECM bracket.
