MT Gear Select Cable: Inspection

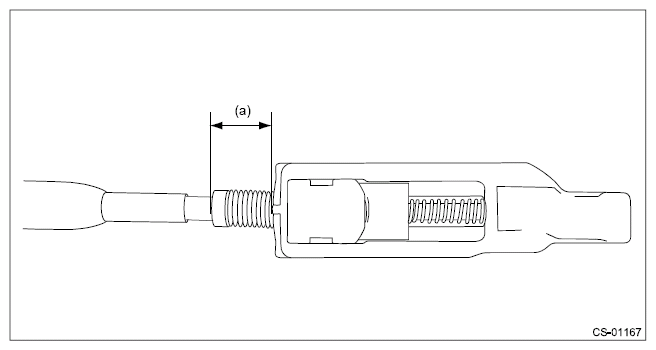

Check that exposed length (a) of MT gear select cable is within specification.
Exposed length (a) of MT gear select cable:

Specification: 11 mm (0.4in)

Courtesy of SUBARU OF AMERICA, INC.
If it is not within the specification, perform the adjustment. Ref. to CONTROL SYSTEMS>MT Gear Select Cable>ADJUSTMENT .
