Select Cable: Adjustment

  1. Shift the select lever to "N" range.
  2. Lift up the vehicle.

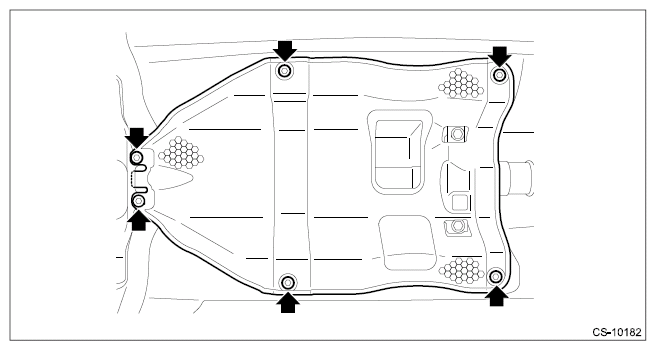

  3. Remove the center exhaust cover.
    G12392851Courtesy of SUBARU OF AMERICA, INC.

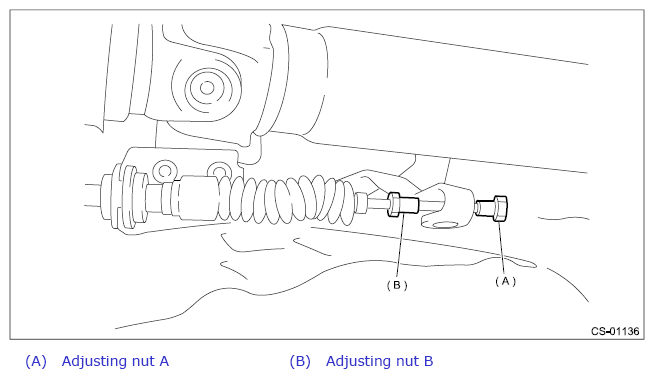

  4. Loosen the adjusting nuts on both sides.
    G12392852Courtesy of SUBARU OF AMERICA, INC.

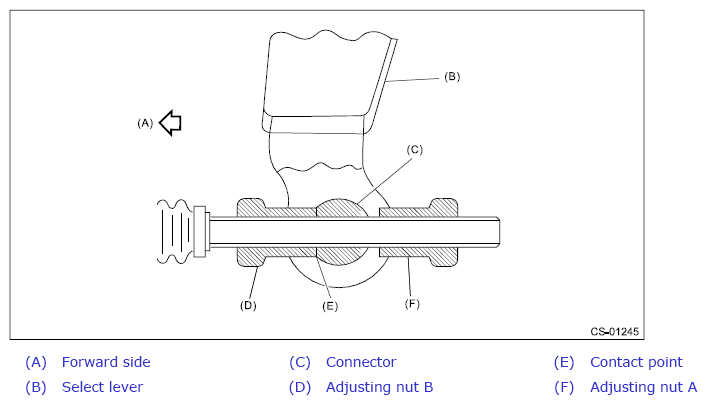

  5. Turn adjusting nut B until it lightly touches the connector.
    G12392853Courtesy of SUBARU OF AMERICA, INC.

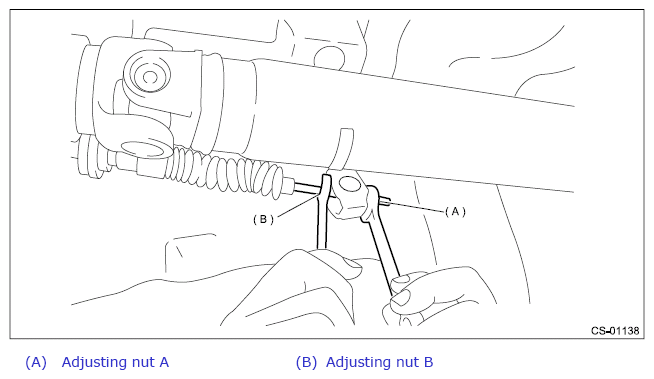

  6. Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.

    Tightening torque:

    7.5N.m (0.8kgf-m, 5.5ft-lb)

    G12392854Courtesy of SUBARU OF AMERICA, INC.
  7. After the completion of adjustment, confirm that the select lever operates normally at all ranges.
  8. Install in the reverse order of removal.
