Select Cable: Installation

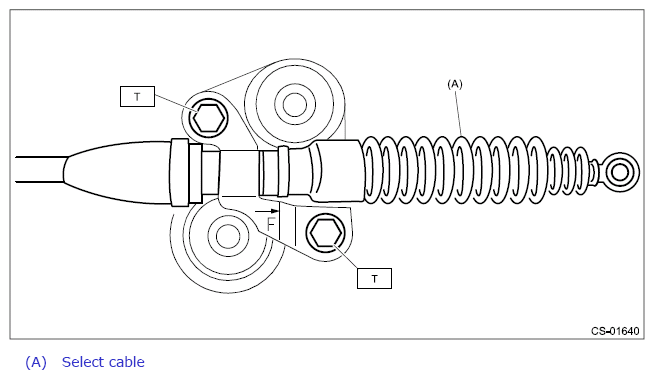

Position the select cable as shown in the figure, and install it to the plate assembly.
CAUTION:
- If the cable is installed in the wrong direction, loosen the bracket bolts, and then reinstall the cable in the correct direction.
- Do not adjust the cable end direction by turning it forcibly to prevent the boot from being twisted.
Tightening torque:

T: 18 N.m (1.8kgf-m, 13.3ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.

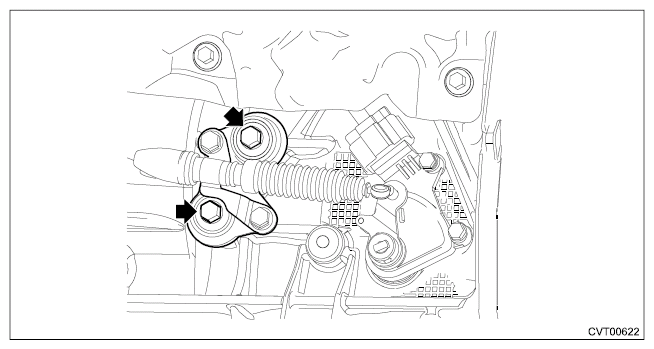

Install the plate assembly to transmission.
Tightening torque:

25 N.m (2.5kgf-m, 18.4ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

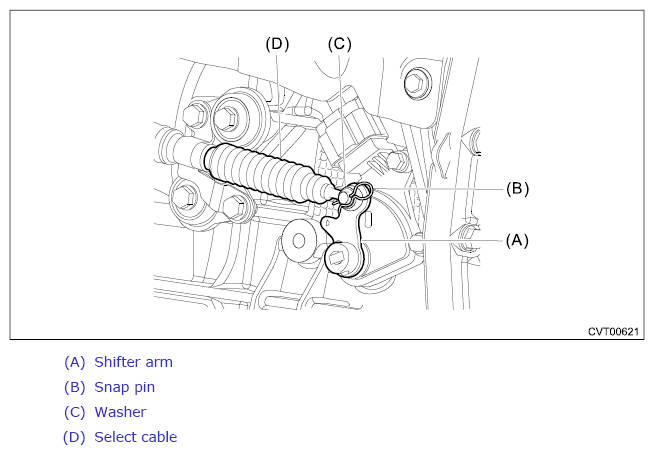

Install the washer and snap pin to the shifter arm.

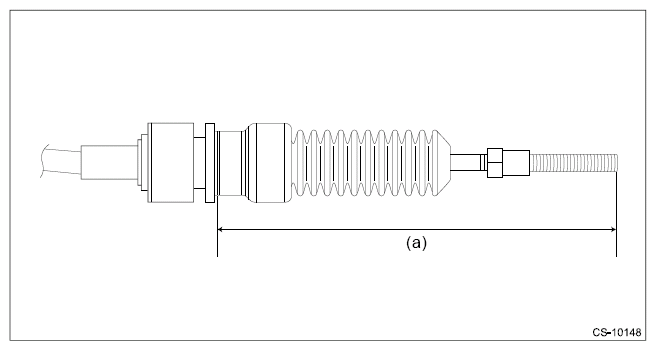

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

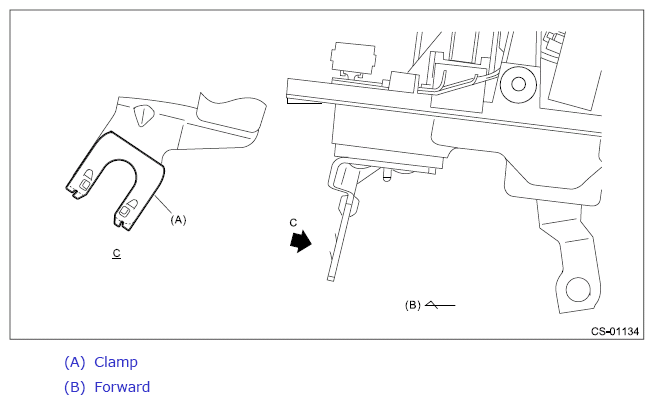

Install new clamp paying attention to the installing direction.

Courtesy of SUBARU OF AMERICA, INC.

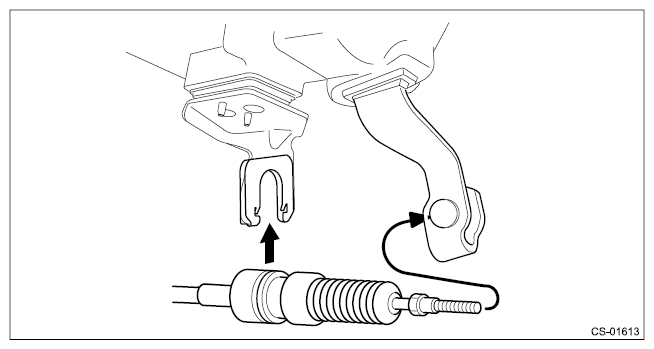

Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

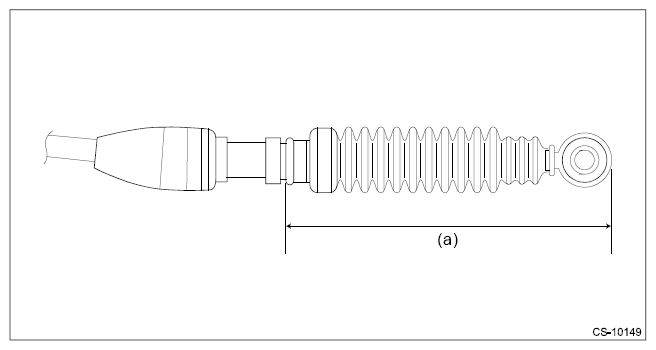

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to CONTROL SYSTEMS>Select Cable>ADJUSTMENT .
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8kgf-m, 13.3ft-lb)
Lower the vehicle.
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
