Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Lift up the vehicle.

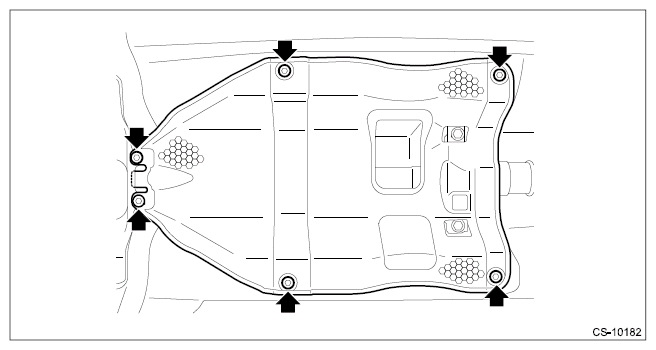

  4. Remove the center exhaust cover.
    G12392837Courtesy of SUBARU OF AMERICA, INC.

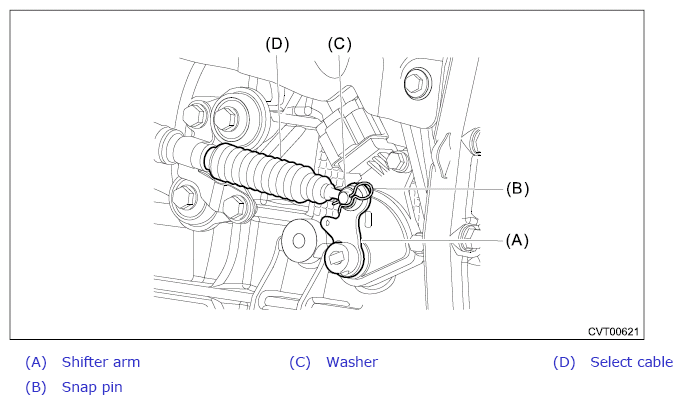

  5. Remove the snap pin and washer from the shifter arm.

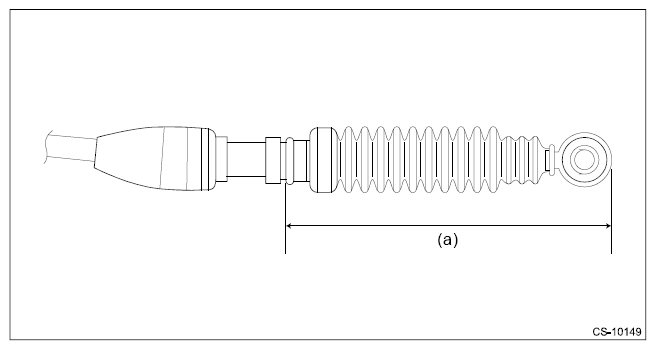

    CAUTION: Do not apply excessive load while holding the part (a).
    G12392838Courtesy of SUBARU OF AMERICA, INC.
    G12392839Courtesy of SUBARU OF AMERICA, INC.

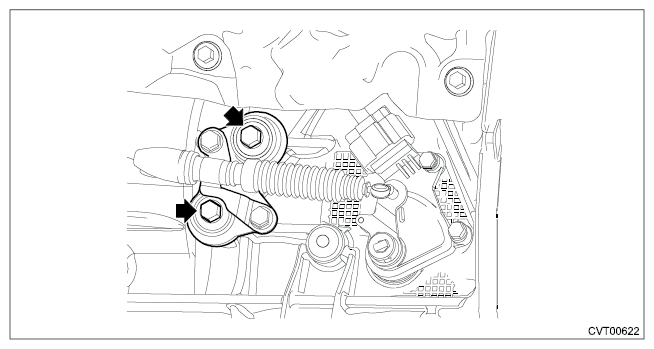

  6. Remove the plate assembly from the transmission case.
    G12392840Courtesy of SUBARU OF AMERICA, INC.

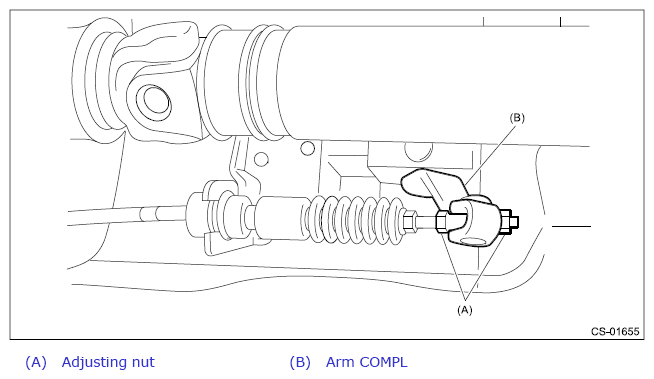

  7. Disconnect the cable from arm COMPL.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392841Courtesy of SUBARU OF AMERICA, INC.
    G12392842Courtesy of SUBARU OF AMERICA, INC.

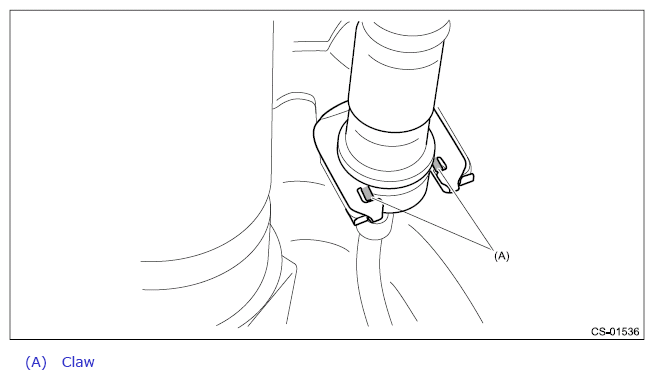

  8. Raise the claw of clamp to remove the cable from bracket.
    G12392843Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the select cable from plate assembly.
