At Select Lever Assembly

Remove the spacer plate.

Courtesy of SUBARU OF AMERICA, INC.
Remove the gasket.

Courtesy of SUBARU OF AMERICA, INC.
Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector from the plate COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the harness from the plate COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

Courtesy of SUBARU OF AMERICA, INC.

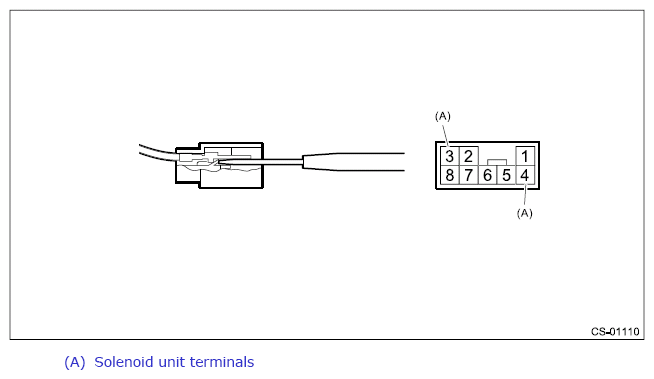

Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05in) or less, KTC connector terminal tool ECC-1T or equivalent.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp push nut.
NOTE: Replace the clamp push nut with a new part.

Courtesy of SUBARU OF AMERICA, INC.
Pull out shaft control.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp push nut.
NOTE: Replace the clamp push nut with a new part.

Courtesy of SUBARU OF AMERICA, INC.
Pull out spacer pin guide.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp pin.

Courtesy of SUBARU OF AMERICA, INC.
Remove the spacer pin guide.

Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever COMPL from the plate COMPL.

Courtesy of SUBARU OF AMERICA, INC.

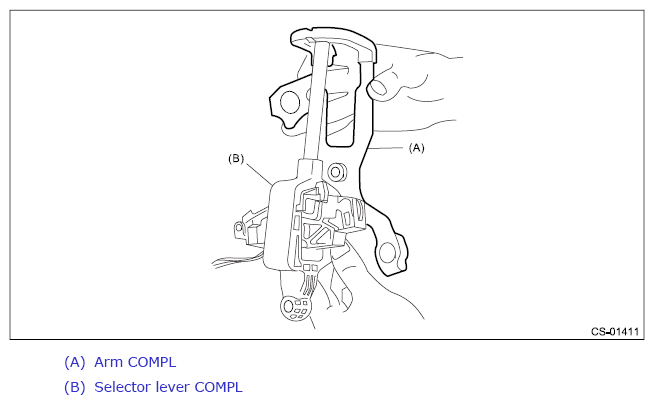

Remove the arm COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the plate guide from the select lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the rod detent and detent spring from the select lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.
