Select Lever: Installation

  1. Set the select lever assembly to the vehicle body.
  2. Tighten the four mounting bolts to attach the select lever assembly to the vehicle body.

    Tightening torque:

    18 N.m (1.8kgf-m, 13.3ft-lb)

    G11255300Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the harness connector.
    G11255299Courtesy of SUBARU OF AMERICA, INC.
  4. Adhere the cut carpet with double sided tape etc.
  5. Install the harness clip to the select lever assembly.
  6. Shift the select lever to "N" range.
  7. Install the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION .
  8. Install the front console panel. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION .
  9. Accessing from the button side of the grip, attach the clamp grip pin.
    G11255307Courtesy of SUBARU OF AMERICA, INC.
  10. Install the cover grip AT securely. (Model with gate shifter)
    NOTE: After installation, check that the cover grip AT cannot be detached.
    G11255308Courtesy of SUBARU OF AMERICA, INC.
  11. Insert the grip assembly to the select lever and press it down until a click is heard.
    NOTE: For the model with boot shifter, insert the grip assembly while holding with your fingers so that the clamp grip pin does not come out.
    • Model with boot shifter
      G11255309Courtesy of SUBARU OF AMERICA, INC.
    • Model with gate shifter
      G11255310Courtesy of SUBARU OF AMERICA, INC.
  12. Securely install the boot assembly. (Model with boot shifter)
    NOTE: After installation, check that the boot assembly does not come off.
    G11255311Courtesy of SUBARU OF AMERICA, INC.
  13. After installation of grip, check the following points.
    • The grip will not come off.
    • The button on the grip operates normally.
  14. Install the console box. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION .
  15. Shift the select lever to "N" range.
  16. Lift up the vehicle.

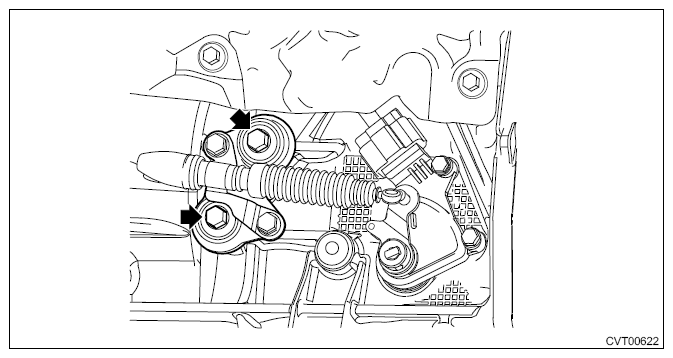

  17. Install the plate assembly to transmission.

    Tightening torque:

    25 N.m (2.5kgf-m, 18.4ft-lb)

    G11255304Courtesy of SUBARU OF AMERICA, INC.

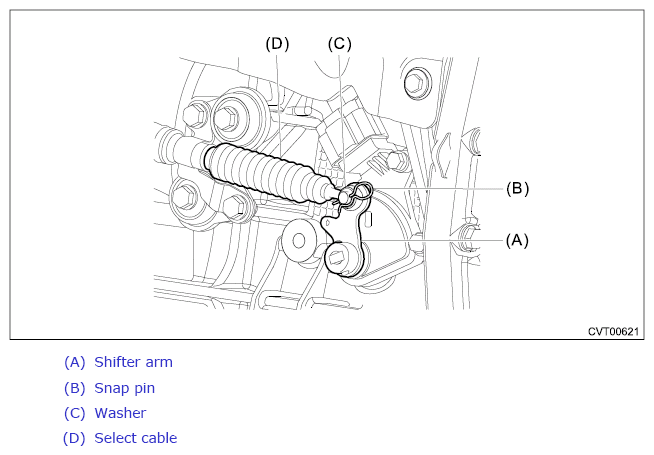

  18. Install the washer and snap pin to the shifter arm.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G12392808Courtesy of SUBARU OF AMERICA, INC.
  19. Adjust the select cable position. Ref. to CONTROL SYSTEMS>Select Cable>ADJUSTMENT .
  20. After adjustment, confirm that the select lever operates properly at all range positions using the shift lock release button.
  21. Install the center exhaust cover.

    Tightening torque:

    18 N.m (1.8kgf-m, 13.3ft-lb)

  22. Lower the vehicle.
  23. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  24. Inspect the following items. If a malfunction is found in the inspection, adjust the select cable or inhibitor switch.
    1. The shift lock operates normally. Ref. to CONTROL SYSTEMS>AT Shift Lock Control System>INSPECTION>SHIFT LOCK OPERATION .
    2. Engine starts when the select lever is in "P" or "N" range, but not in other ranges.
    3. Back-up light illuminates when the select lever is in the "R" range, but not in other ranges.
    4. Select lever and indicator positions are matched.
