6MT Model

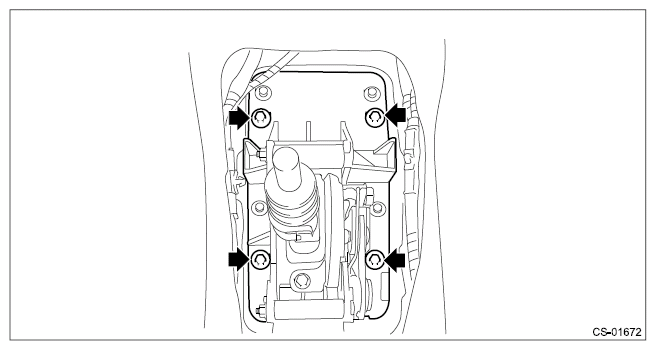

Install the gear shift lever assembly.
Tightening torque:

18 N.m (1.8kgf-m, 13.3ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the harness clamp.
Lift up the vehicle.
Install the cable cover assembly.
Tightening torque:

7.5N.m (0.8kgf-m, 5.5ft-lb)

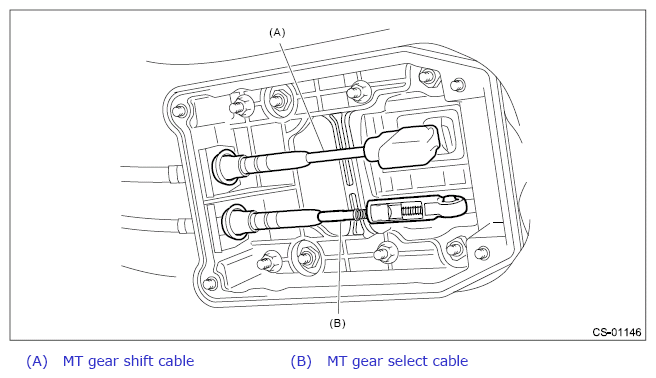

Connect the MT gear shift cable and MT gear select cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner excessively.
- Do not apply excessive load while holding the part (a).
Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Attach the cable cover plate.
Tightening torque:

7.5N.m (0.8kgf-m, 5.5ft-lb)
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8kgf-m, 13.3ft-lb)
Install the front exhaust pipe. Ref. to EXHAUST (H4DO)>Front Exhaust Pipe>INSTALLATION .
Lower the vehicle.
Install the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION .
Install the front console panel and install the gear shift knob. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION .
Make sure the gears can be shifted accurately into each gear. Adjust the MT gear select lever, if the gears cannot be shifted correctly. Ref. to CONTROL SYSTEMS>MT Gear Select Cable>ADJUSTMENT .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
