Exhaust Side

  1. Disconnect the ground cable from battery.
  2. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

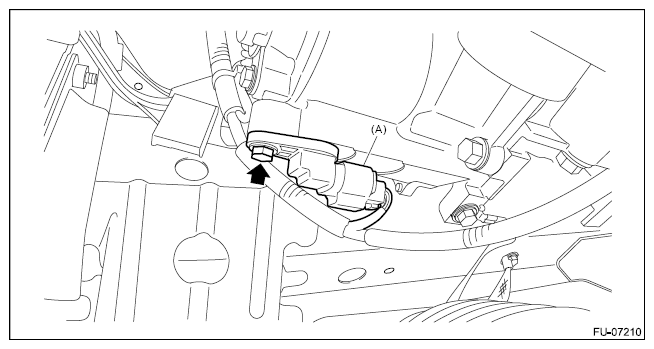

    • RH side
      G12508990Courtesy of SUBARU OF AMERICA, INC.

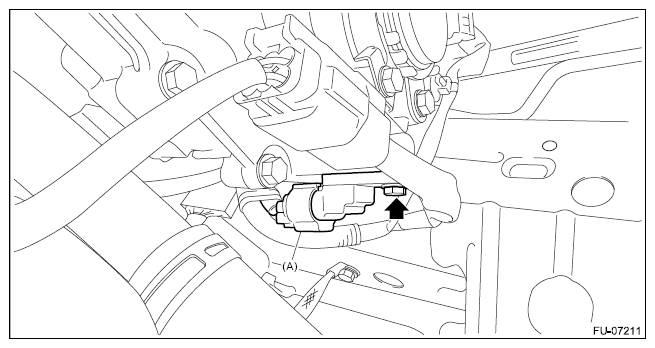

    • LH side
      G12508991Courtesy of SUBARU OF AMERICA, INC.
