Electronic Throttle Control Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

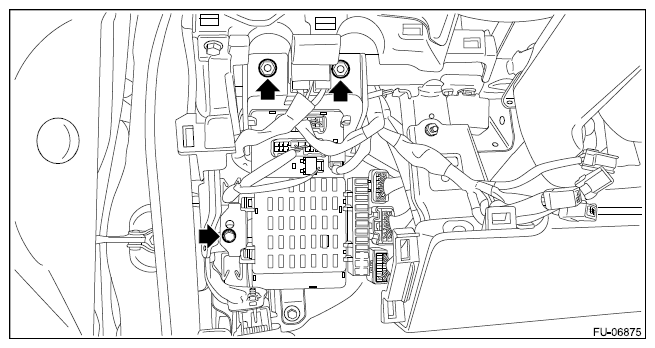

  3. Remove the nut and bolt, and move the fuse block downwards.
    G12509042Courtesy of SUBARU OF AMERICA, INC.

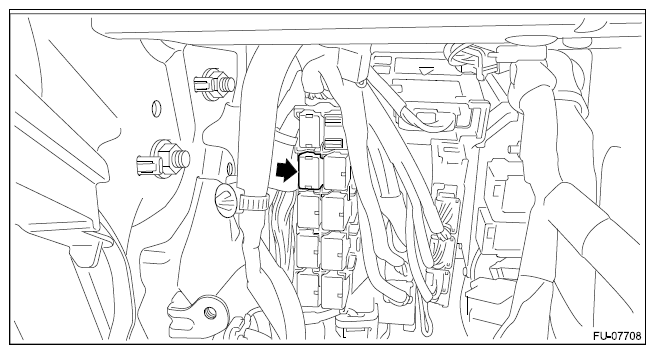

  4. Remove the electronic throttle control relay from the relay block.
    G12509043Courtesy of SUBARU OF AMERICA, INC.
