Engine Coolant Temperature Sensor: Removal

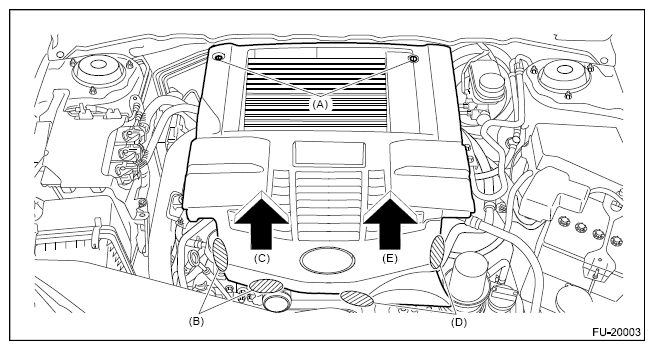

  1. Remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    G12508974Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Drain engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .

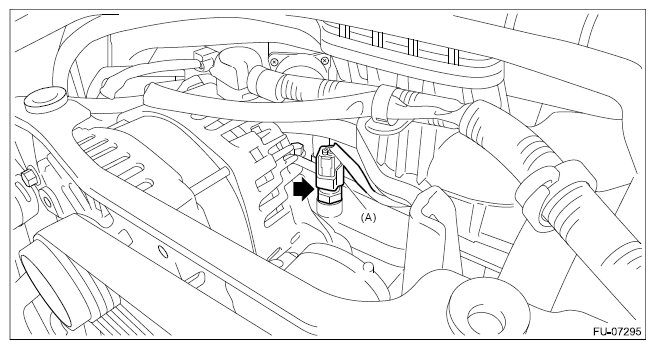

  4. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.
    G12508975Courtesy of SUBARU OF AMERICA, INC.
