Engine Oil Temperature Sensor: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

Disconnect the ground cable from battery.

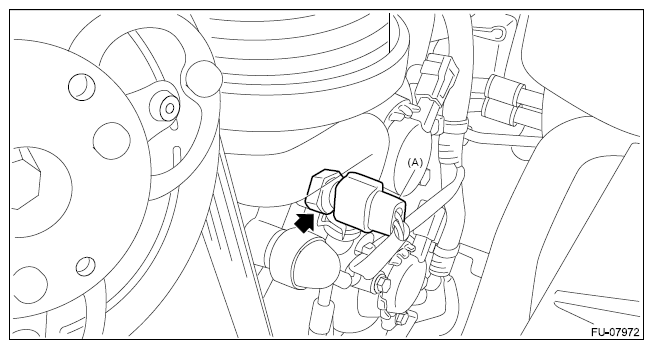

Disconnect the connector (A) from the engine oil temperature sensor, and remove the engine oil temperature sensor from the chain cover.

Courtesy of SUBARU OF AMERICA, INC.
