Engine Wiring Harness: Installation

  1. Set the engine wiring harness to the engine, and connect the connector.

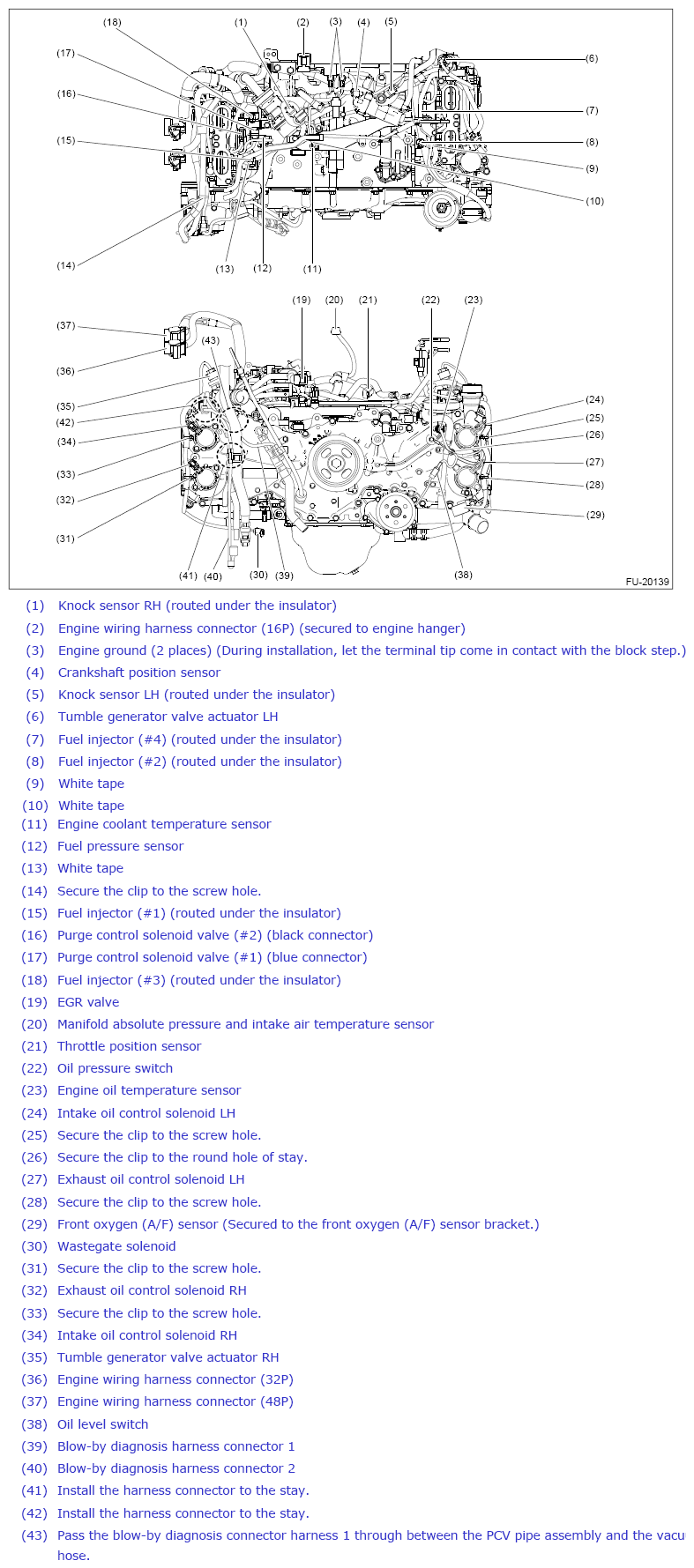

    • Structural diagram 1
      G12508971Courtesy of SUBARU OF AMERICA, INC.

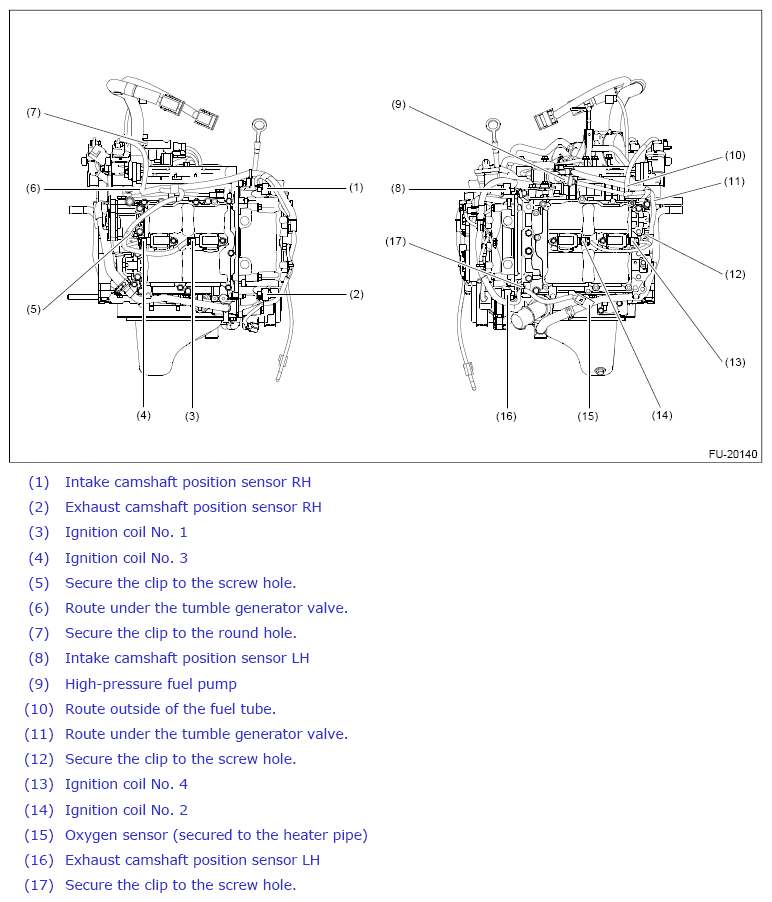

    • Structural diagram 2
      G12508972Courtesy of SUBARU OF AMERICA, INC.

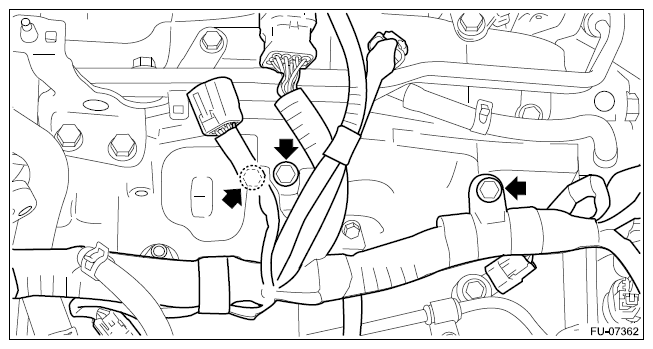

  2. Install the engine wiring harness.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G12508973Courtesy of SUBARU OF AMERICA, INC.
  3. Install the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>INSTALLATION .
  4. Connect the battery ground terminal.
