Engine Wiring Harness: Removal

  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Disconnect the ground cable from battery.
  3. Open the fuel filler lid and remove the fuel filler cap.
  4. Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
  5. Disconnect the connector from the engine.

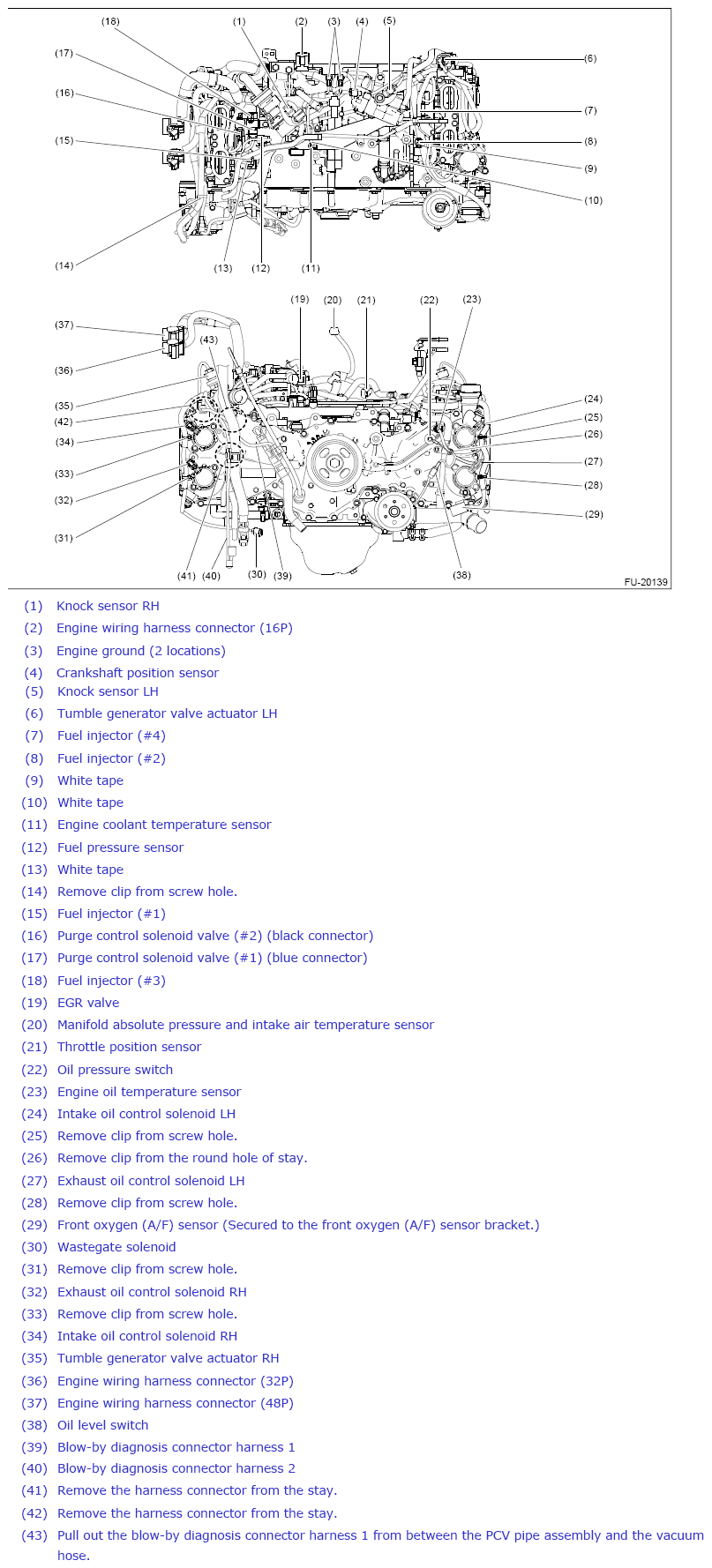

    • Structural diagram 1
      G12508968Courtesy of SUBARU OF AMERICA, INC.

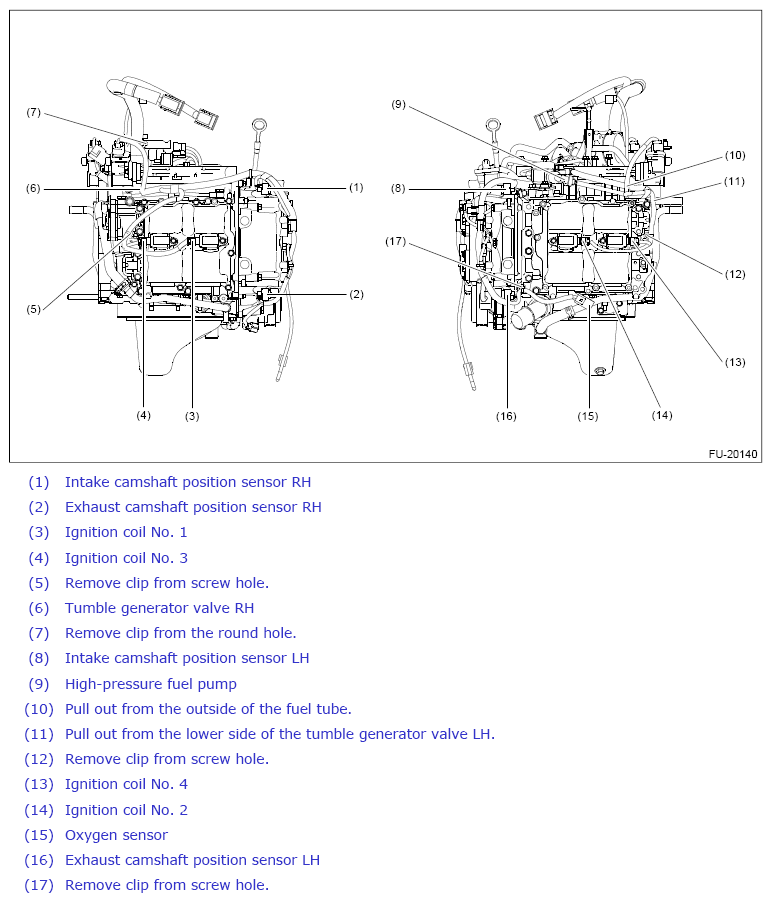

    • Structural diagram 2
      G12508969Courtesy of SUBARU OF AMERICA, INC.

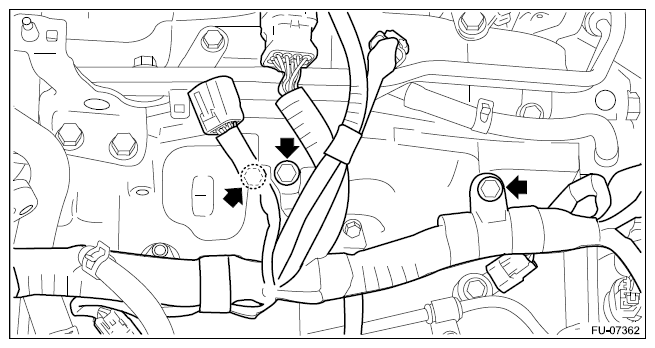

  6. Remove the engine wiring harness.
    G12508970Courtesy of SUBARU OF AMERICA, INC.
