Fuel Filler Pipe: Disassembly

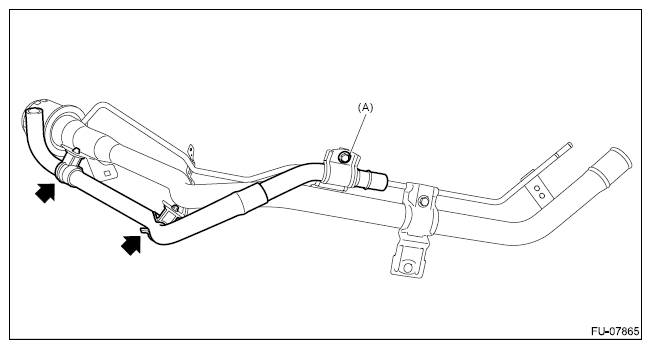

  1. Remove the bracket bolt (A) securing the drain pipe, and remove the drain hose from the clip for the fuel filler pipe.
    G12509100Courtesy of SUBARU OF AMERICA, INC.

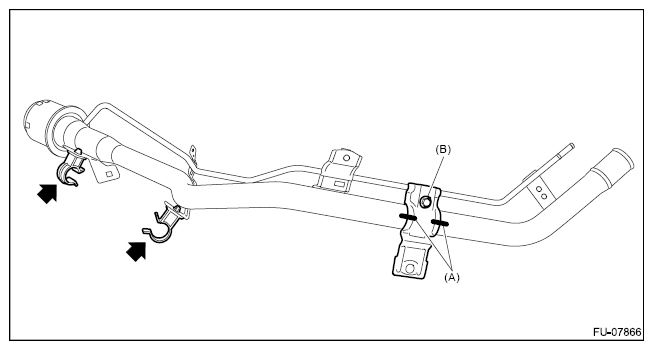

  2. Using a marker pen, make alignment marks (A) on the fuel filler pipe and the bracket.
  3. Remove the bracket bolt (B) securing the fuel filler pipe, and remove the clip from the fuel filler pipe.
    G12509101Courtesy of SUBARU OF AMERICA, INC.

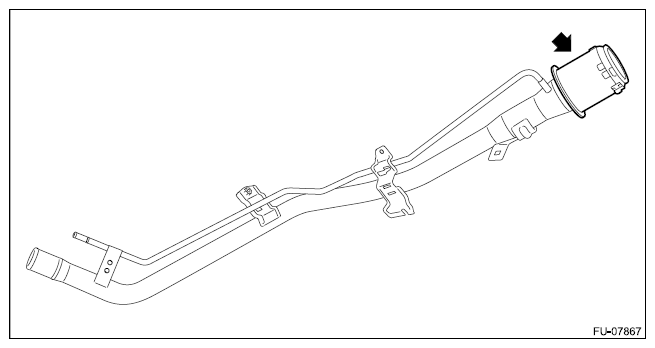

  4. Remove the neck holder from the fuel filler pipe.
    G12509102Courtesy of SUBARU OF AMERICA, INC.
