Fuel Filler Pipe: Installation

Open the fuel filler lid.
Insert the fuel filler pipe assembly into the rubber saucer from inside of the rear fender.

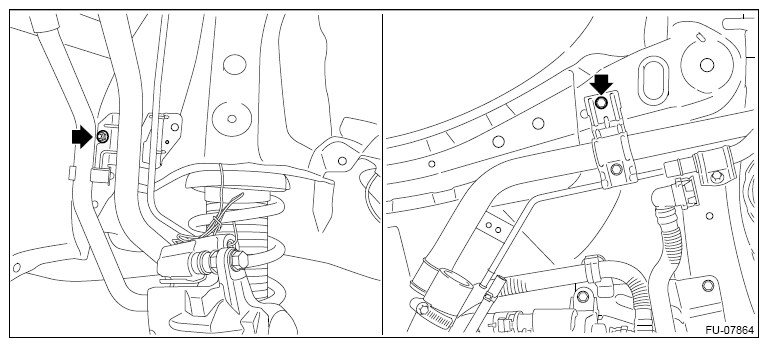

Install the fuel filler pipe assembly to the vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5. ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

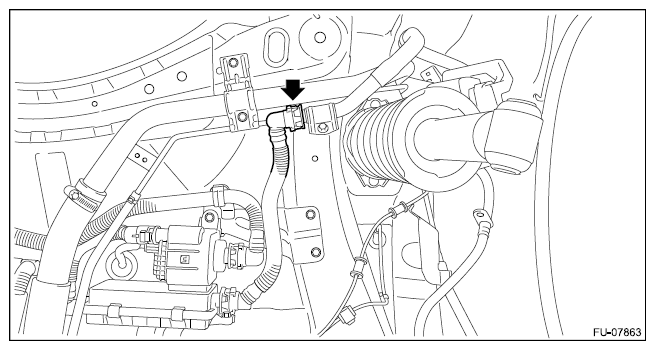

Connect the quick connector for drain pipe to the fuel filler pipe assembly.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.

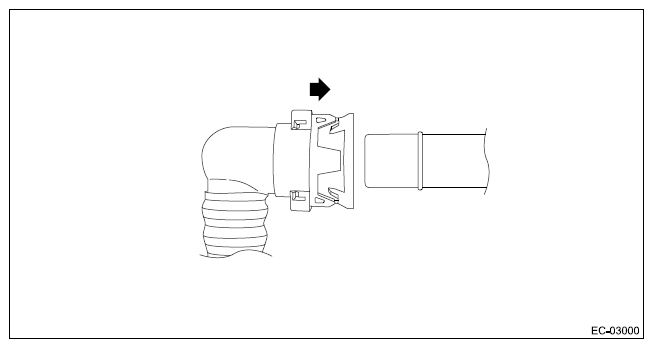

NOTE: Connect the quick connector as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

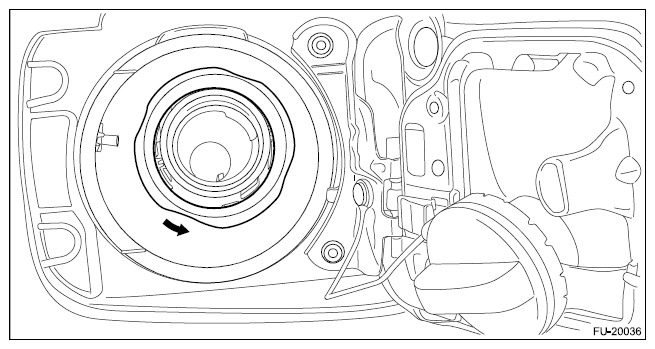

Align the cutout on the fuel filler pipe protector and the protrusion of the neck holder and insert them all the way, and then turn the fuel filler pipe protector in the direction of the arrow until it is locked.

Courtesy of SUBARU OF AMERICA, INC.

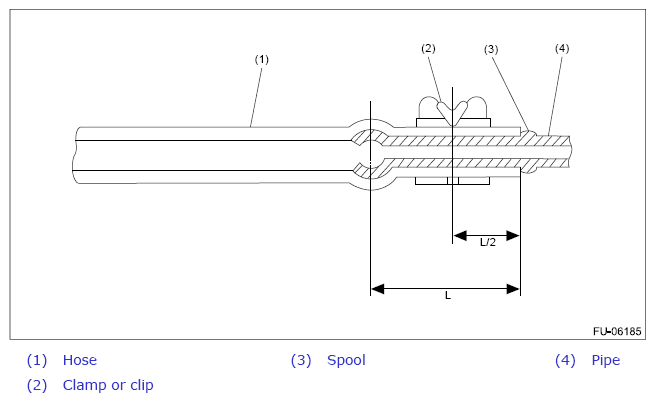

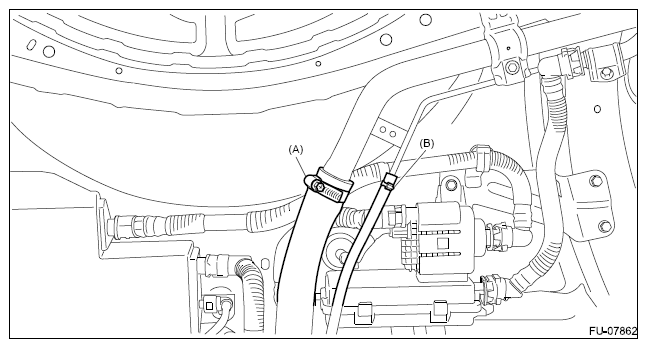

Securely insert the fuel filler hose (A) and air vent hose (B) to the spool, then install the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear mud guard RH. Ref. to EXTERIOR/INTERIOR TRIM>Mud Guard>INSTALLATION .
Install the rear sub frame assembly. Ref. to REAR SUSPENSION>Rear Sub Frame>INSTALLATION .
Connect the battery ground terminal.
Inspect the wheel alignment and adjust if necessary. Ref. to FRONT SUSPENSION>WHEEL ALIGNMENT .
Perform reinitialization of the auto headlight beam leveler system. (Model with auto headlight beam leveler) Ref. to LIGHTING SYSTEM>Auto Headlight Beam Leveler System>PROCEDURE .
Adjust the steering angle sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM & H/U)>ADJUSTMENT .
