Fuel Injector Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the cover from the relay block on the front side of the front strut RH.
    G12509049Courtesy of SUBARU OF AMERICA, INC.

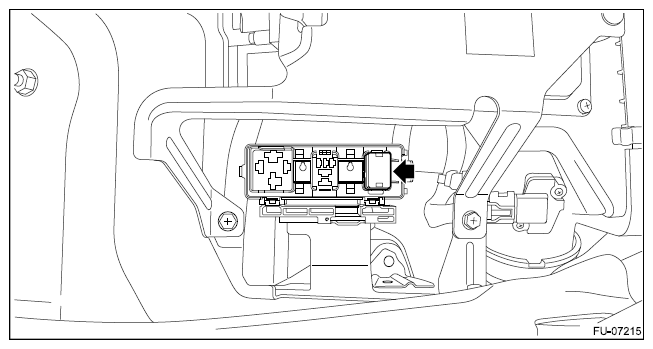

  3. Remove the fuel injector relay from relay block.
    G12509050Courtesy of SUBARU OF AMERICA, INC.
