Fuel Injector RH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery.
  2. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .

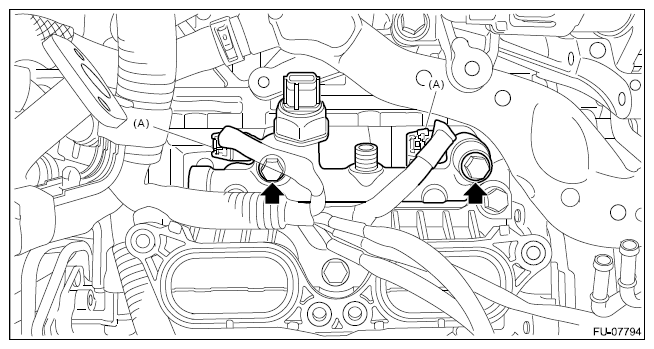

  3. Disconnect the connector (A) from fuel injector, and remove the fuel injector pipe.
    G12508908Courtesy of SUBARU OF AMERICA, INC.

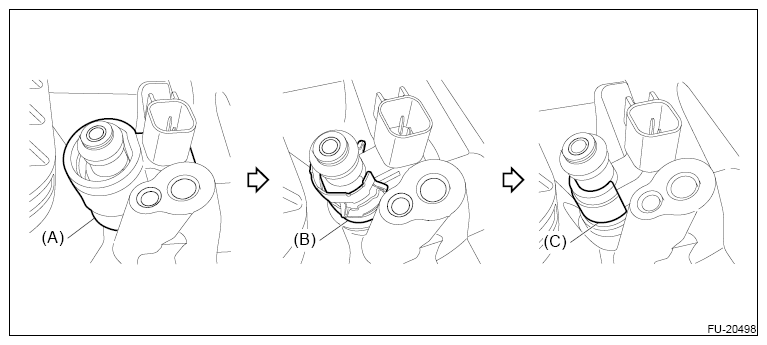

  4. Using scissors, remove the rubber cover (A) from the fuel injector.
  5. Remove the holder (B) and spacer (C) from the fuel injector.
    G12508909Courtesy of SUBARU OF AMERICA, INC.

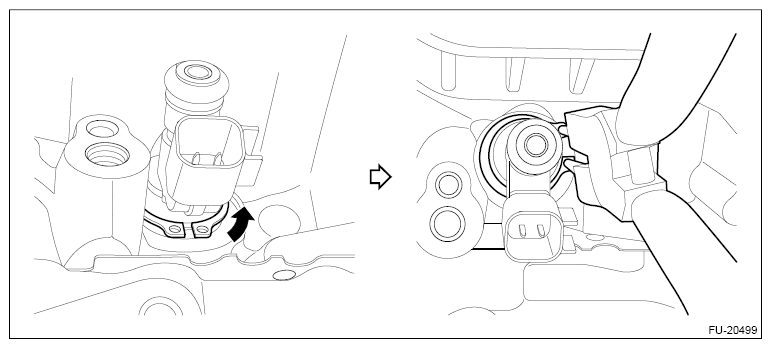

  6. Turn the snap ring and remove the snap ring from the fuel injector.
    G12508910Courtesy of SUBARU OF AMERICA, INC.
  7. Using ST, remove the fuel injector from the cylinder head.

    ST 18356AA000

    INJECTOR REMOVER

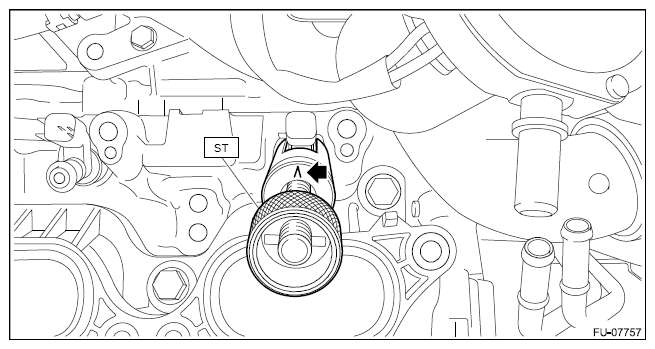

    1. Set the ST so that its mark faces the center of the engine.
      G12508911Courtesy of SUBARU OF AMERICA, INC.

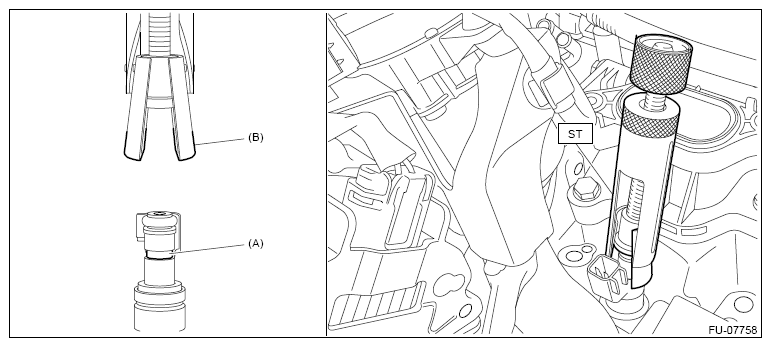

    2. Pinch the fuel injector groove (A) with the claw section (B) of ST.
      G12508912Courtesy of SUBARU OF AMERICA, INC.

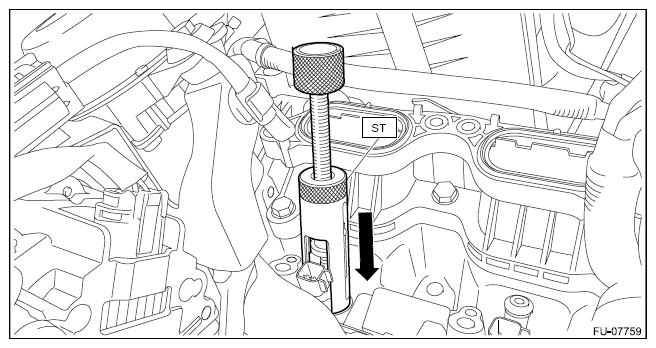

    3. Press the ST to the cylinder head.
      G12508913Courtesy of SUBARU OF AMERICA, INC.

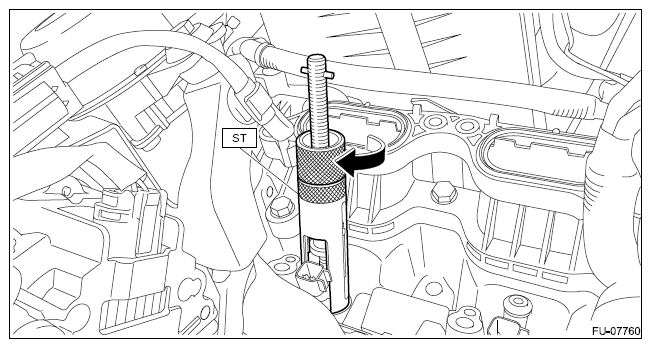

    4. Screw in the threaded section of the ST clockwise, and remove the fuel injector from the cylinder head.
      G12508914Courtesy of SUBARU OF AMERICA, INC.
