Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Courtesy of SUBARU OF AMERICA, INC.

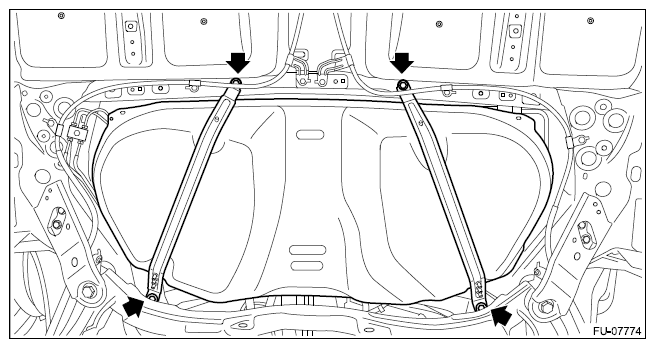

Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 1: Fuel Tank Band Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

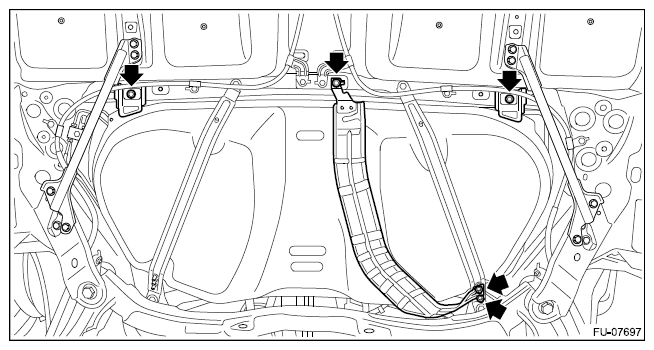

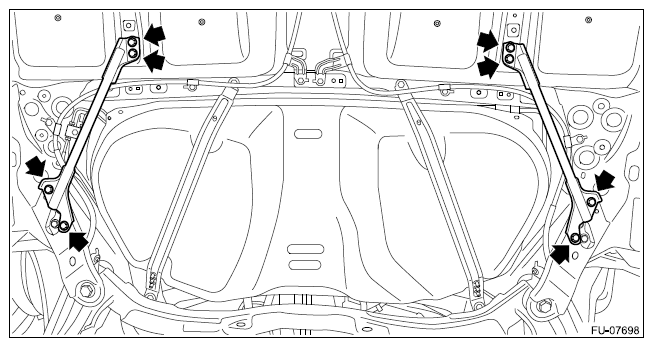

Install the stay - rear frame COMPL.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover and stopper.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Tank Protector>INSTALLATION .
Connect the vent tube to the canister.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.

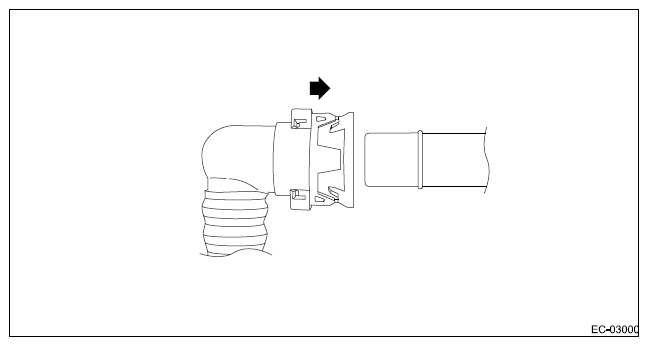

NOTE: Connect the quick connector as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

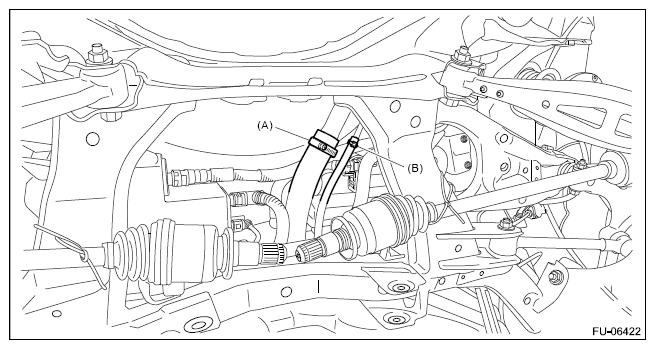

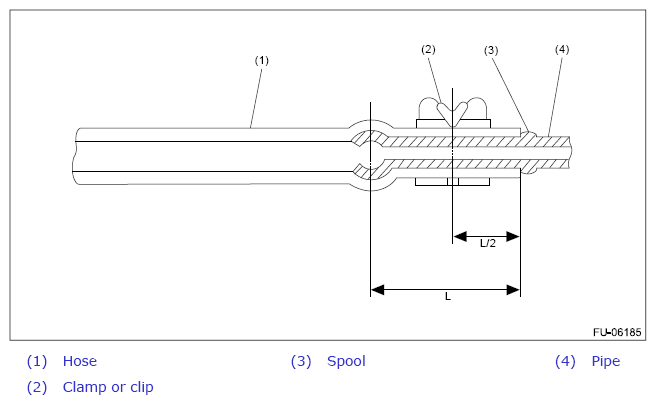

Securely insert the fuel filler hose (A) and evaporation hose (B) until the hose end contacts the spool, then attach the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear differential. Ref. to DIFFERENTIALS>Rear Differential (T-type)>INSTALLATION .
Install the rear exhaust pipe and muffler. Ref. to EXHAUST (H4DOTC)>Rear Exhaust Pipe>INSTALLATION . Ref. to EXHAUST (H4DOTC)>Muffler>INSTALLATION .
Connect the quick connector of the fuel delivery tube.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check that the quick connector is securely connected.

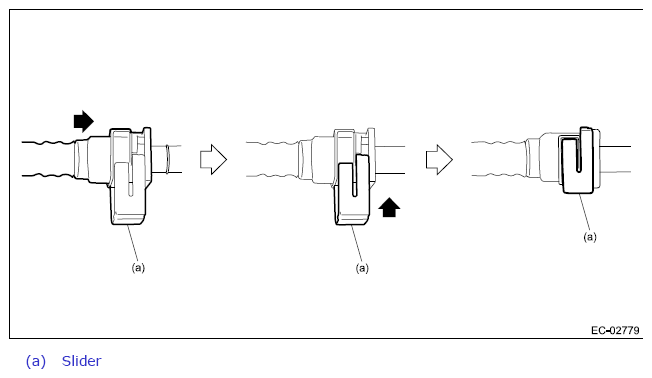

NOTE: Connect the quick connector as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

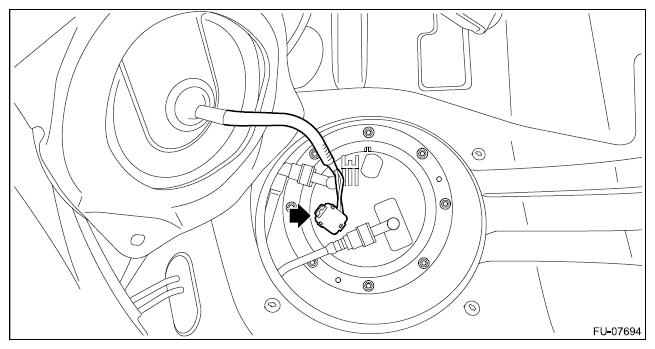

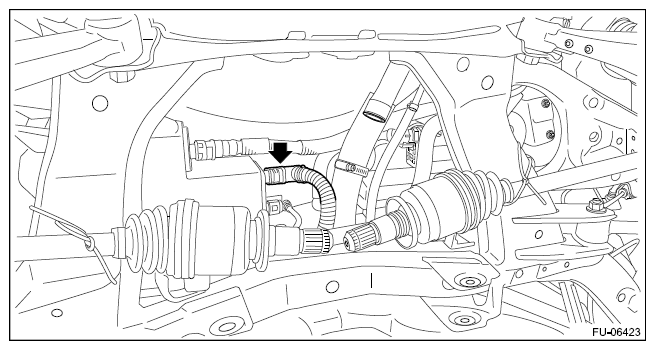

Connect the connector to the fuel sub level sensor.

Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Courtesy of SUBARU OF AMERICA, INC.

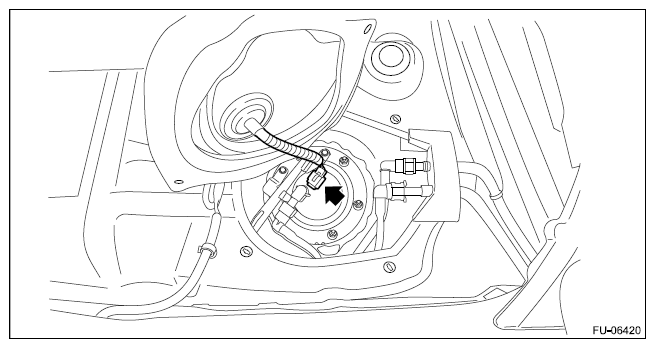

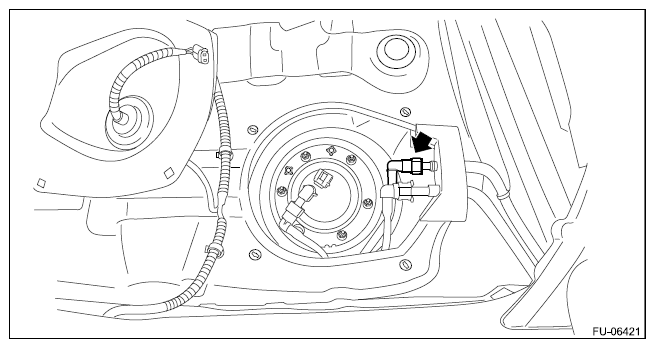

Connect the connector to the fuel pump.

Courtesy of SUBARU OF AMERICA, INC.

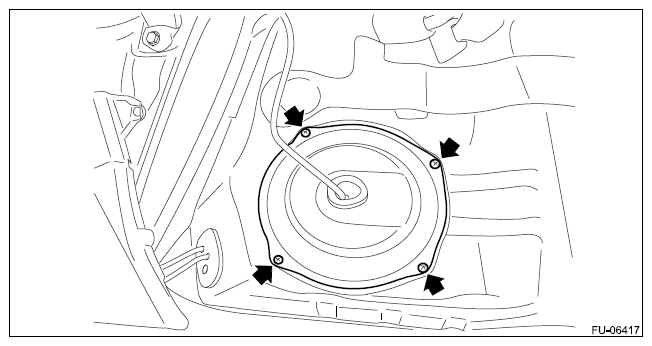

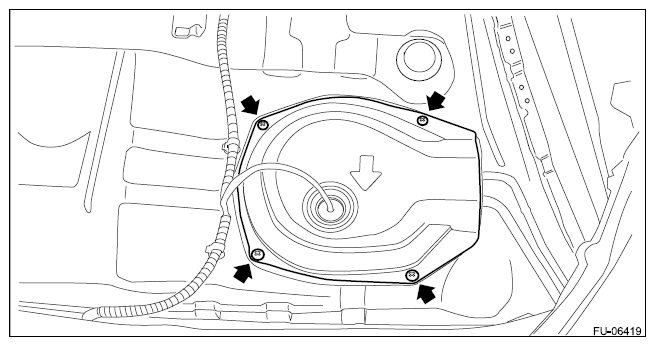

Install the service hole cover of fuel pump.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. Ref. to SEATS>Rear Seat>INSTALLATION .
Connect the battery ground terminal.
