Fuel Tank: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the tubes using a container or cloth.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Drain fuel. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  3. Disconnect the ground cable from battery.
  4. Remove the rear seat cushion. Ref. to SEATS>REAR SEAT>REMOVAL .

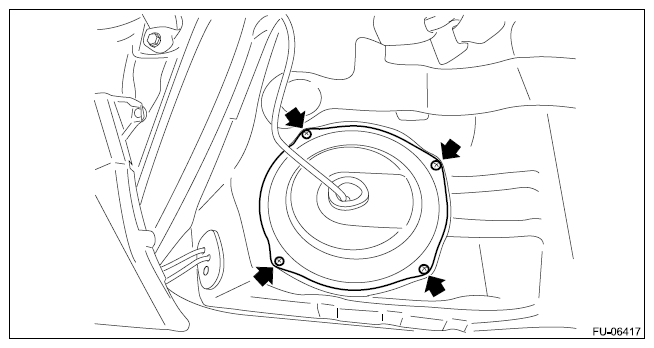

  5. Remove the service hole cover of fuel pump.
    G12509063Courtesy of SUBARU OF AMERICA, INC.

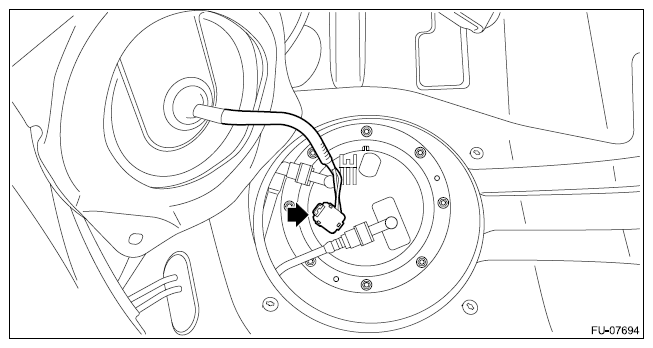

  6. Disconnect connectors from the fuel pump, and move aside the service hole cover.
    G12509064Courtesy of SUBARU OF AMERICA, INC.

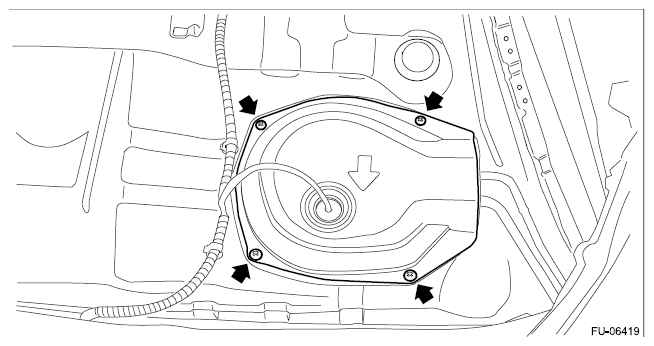

  7. Remove the service hole cover of fuel sub level sensor.
    G12509065Courtesy of SUBARU OF AMERICA, INC.

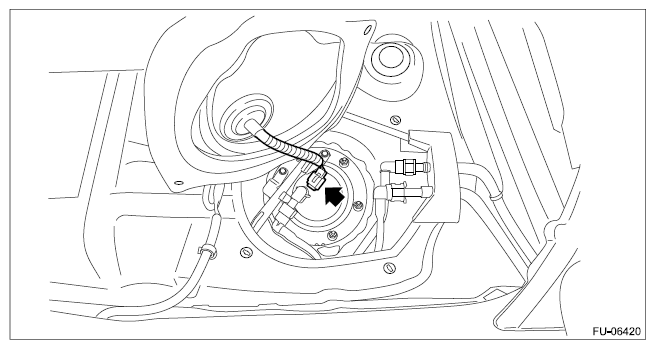

  8. Disconnect the connector from the fuel sub level sensor, and move aside the service hole cover.
    G12509066Courtesy of SUBARU OF AMERICA, INC.

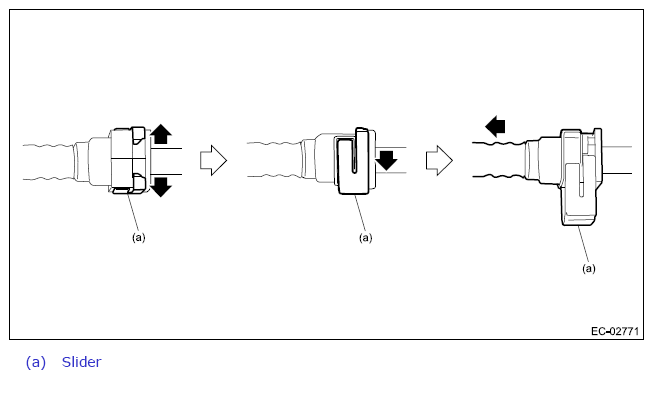

  9. Disconnect the quick connector on the fuel delivery tube.
    NOTE: Disconnect the quick connector as shown in the figure.
    G12509067Courtesy of SUBARU OF AMERICA, INC.
    G12509068Courtesy of SUBARU OF AMERICA, INC.
  10. Lift up the vehicle.
  11. Remove the rear exhaust pipe and muffler. Ref. to EXHAUST (H4DOTC)>Rear Exhaust Pipe>REMOVAL . Ref. to EXHAUST (H4DOTC)>Muffler>REMOVAL .
  12. Remove the rear differential. Ref. to DIFFERENTIALS>Rear Differential (T-type)>REMOVAL .

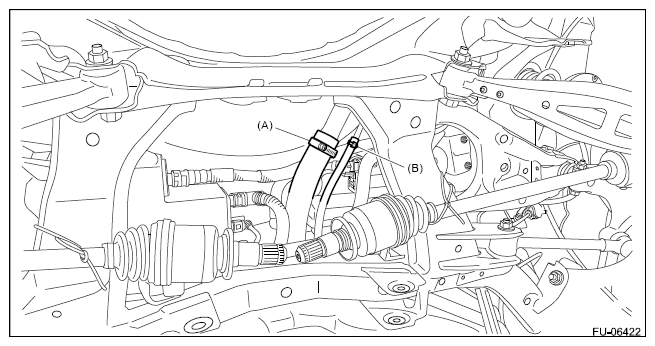

  13. Disconnect fuel filler hose (A) and air vent hose (B) from the fuel filler pipe assembly.
    G12509069Courtesy of SUBARU OF AMERICA, INC.

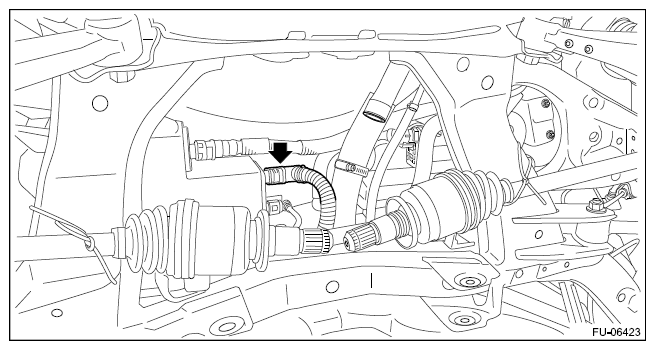

  14. Disconnect the vent tube from canister.

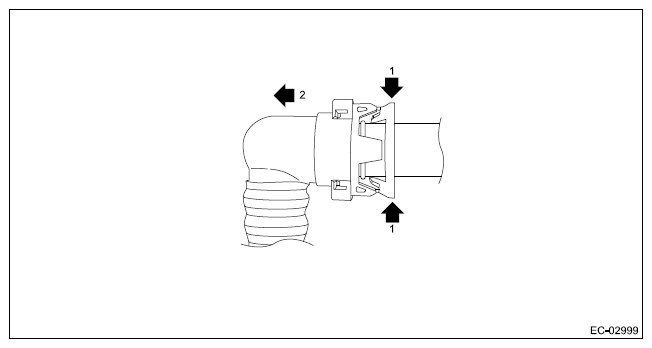

    NOTE: Disconnect the quick connector as shown in the figure.
    G12509070Courtesy of SUBARU OF AMERICA, INC.
    G12509071Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Tank Protector>REMOVAL .

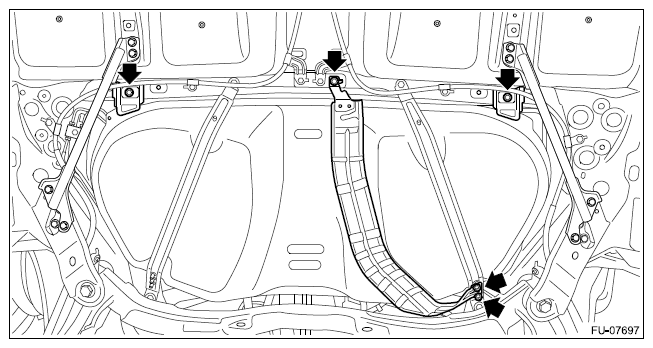

  16. Remove the heat shield cover and stopper.
    G12509072Courtesy of SUBARU OF AMERICA, INC.

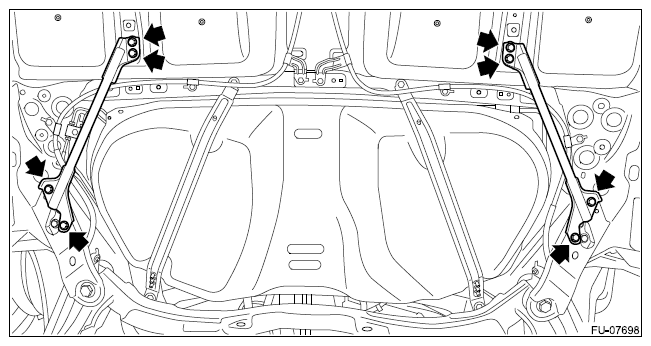

  17. Remove the stay - rear frame COMPL.
    G12509073Courtesy of SUBARU OF AMERICA, INC.

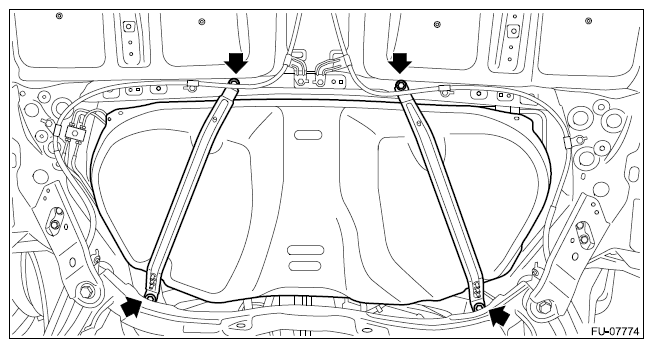

  18. Support the fuel tank with a transmission jack, remove the bolts from the fuel tank band, and remove the fuel tank from the vehicle.
    WARNING:
    • A helper is required to perform this work.
    • Fuel may remain in the fuel tank. This will cause the left and right sides to be unbalanced. Be careful not to drop the fuel tank.
    G12509074Courtesy of SUBARU OF AMERICA, INC.
