High-Pressure Fuel Pump

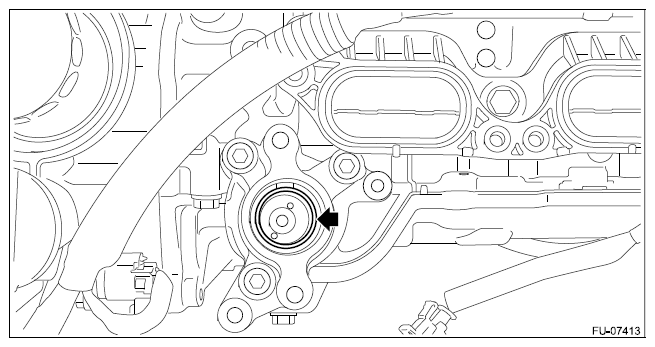

Install the fuel pump lifter to the high-pressure fuel pump case.
NOTE: Apply engine oil to the side of the high-pressure fuel pump case and to the bottom surface of the fuel pump lifter.

Courtesy of SUBARU OF AMERICA, INC.

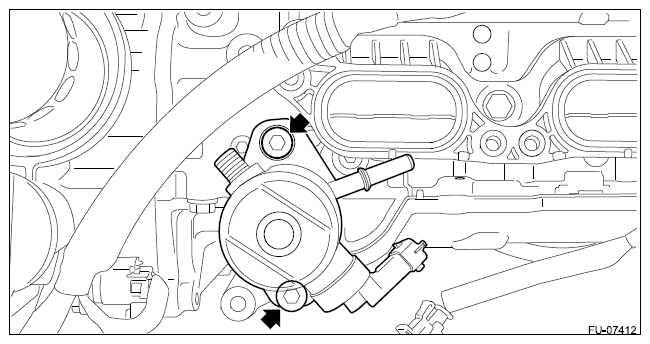

Using TORX PLUS® bit 40IP, install the high-pressure fuel pump.
NOTE: Use new O-rings.

Tightening torque:

21 N.m (2.1 kgf-m, 15. ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

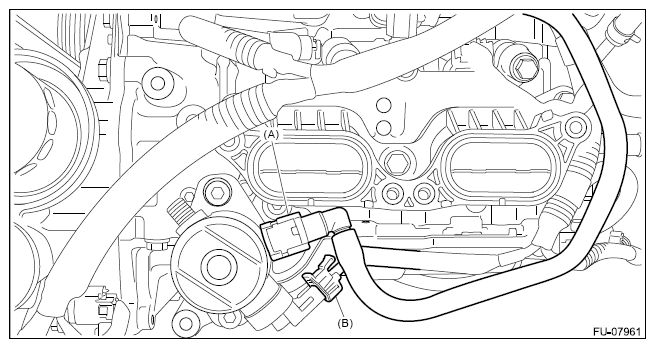

Connect the connector (B) to the high-pressure fuel pump, and install the fuel delivery pipe (A) to the high-pressure fuel pump.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check that the quick connector is securely connected.
NOTE: Connect the quick connector as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the high-pressure fuel delivery pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE .
Connect the battery ground terminal.
