Intake Manifold: Assembly

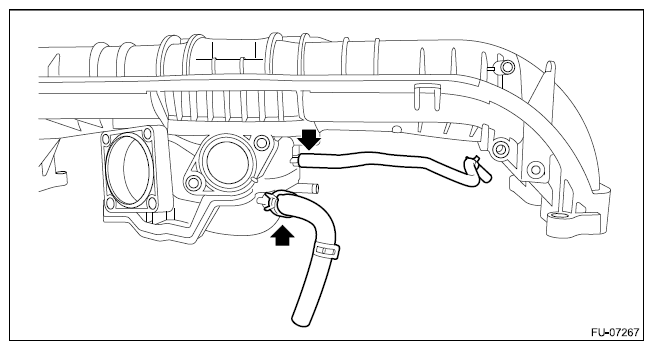

Connect the PCV hose and vacuum control hose to intake manifold.

Courtesy of SUBARU OF AMERICA, INC.

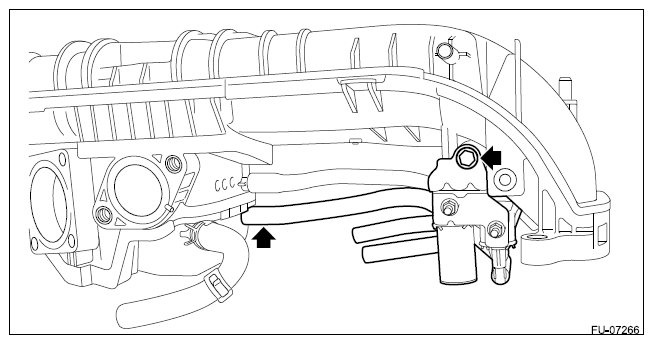

Connect the vacuum hose to the intake manifold, and install the purge control solenoid valve.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

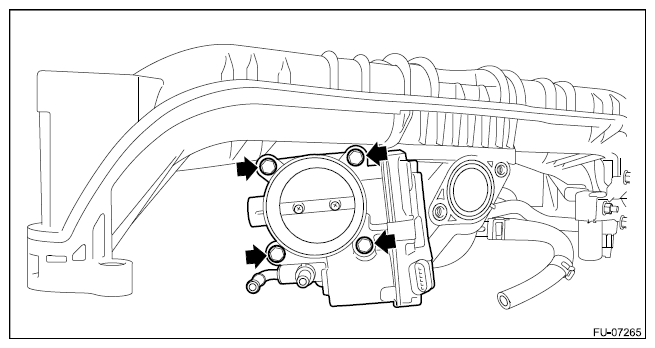

Install the throttle body to the intake manifold.
NOTE: Use a new gasket.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

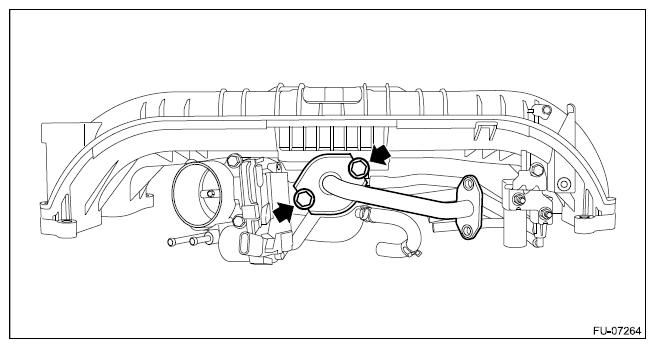

Temporarily install the EGR pipe to the intake manifold.
NOTE:
- Use new O-rings.
- Tighten the EGR pipe when installing the intake manifold. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR Pipe>INSTALLATION .
Courtesy of SUBARU OF AMERICA, INC.

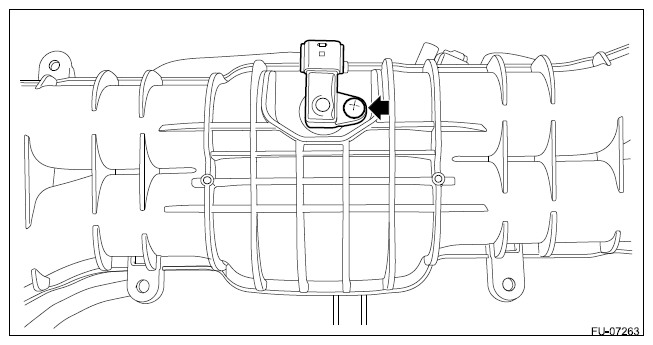

Install the manifold absolute pressure & intake air temperature sensor to the intake manifold.
NOTE: Use new O-rings.

Tightening torque:

3.5 N.m (0.3 kgf-m, 2. ft-lb)
