Main Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .

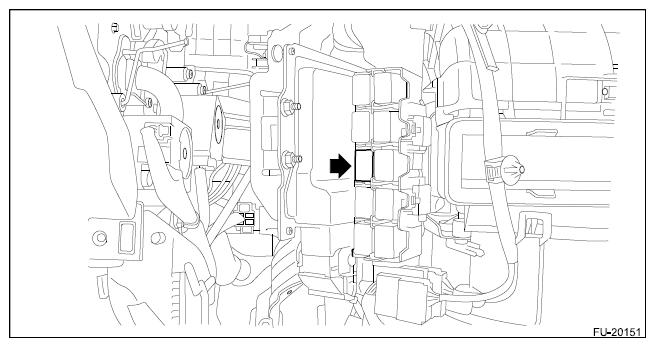

  3. Remove the main relay.
    G12509039Courtesy of SUBARU OF AMERICA, INC.
