Check The Mass Air Flow Sensor Unit

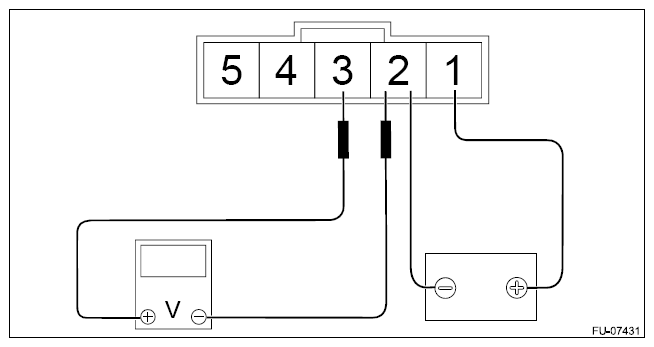

  1. Connect the battery positive terminal to terminal No. 1 and the battery ground terminal to terminal No. 2, the circuit tester positive terminal to terminal No. 3 and the circuit tester ground terminal to terminal No. 2.
    G12509011Courtesy of SUBARU OF AMERICA, INC.

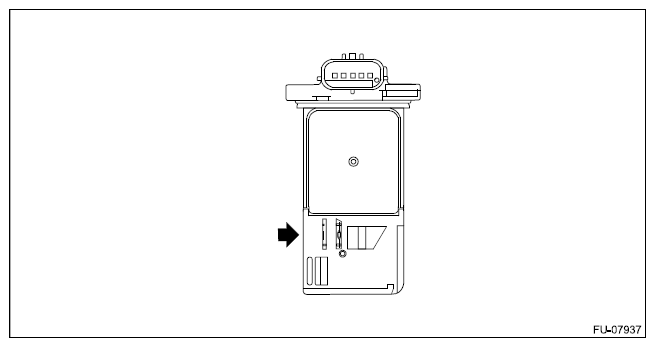

  2. Check the voltage changes when air is blown to the mass air flow sensor unit in arrow direction.
    G12509012Courtesy of SUBARU OF AMERICA, INC.
