Tumble Generator Valve Assembly: Removal

NOTE: The tumble generator valve assembly is tightened together with the intake manifold.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Disconnect the ground cable from battery.
  3. Open the fuel filler lid and remove the fuel filler cap.
  4. Remove the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold>REMOVAL .
  5. Remove the air intake adapter from the cylinder head.
    • RH side

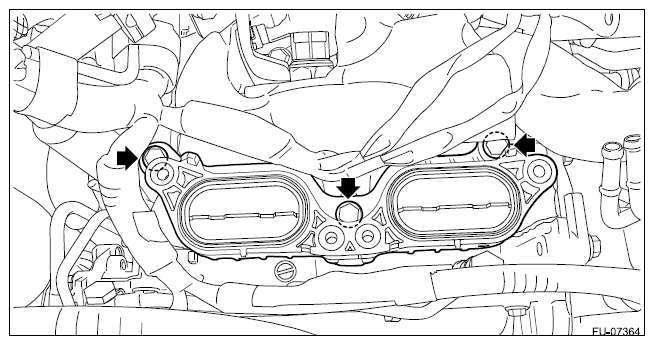

      G12508899Courtesy of SUBARU OF AMERICA, INC.
    • LH side

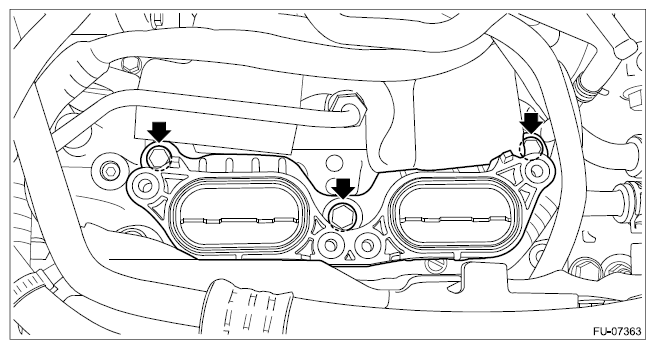

      G12508900Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cylinder head plate from cylinder head.

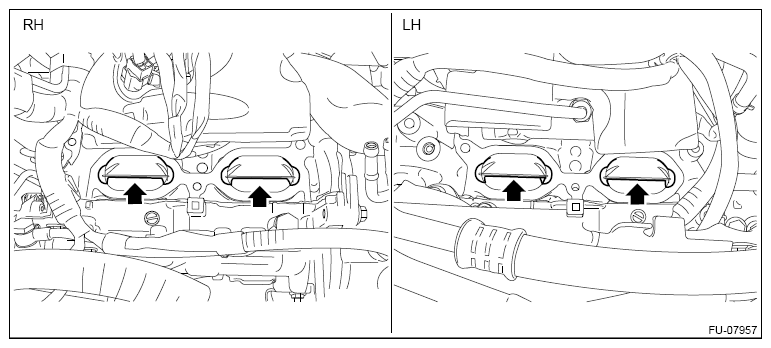

    G12508901Courtesy of SUBARU OF AMERICA, INC.
