Crankshaft Position Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .

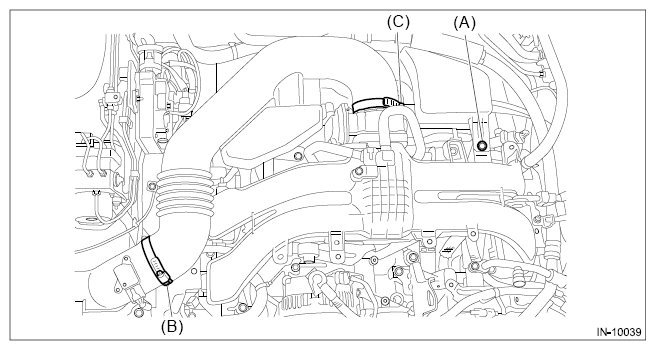

  2. Remove the clip (A) from the air intake boot.
  3. Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
  4. Loosen the clamp (C) which secures the throttle body to the air intake boot.
    G12505365Courtesy of SUBARU OF AMERICA, INC.

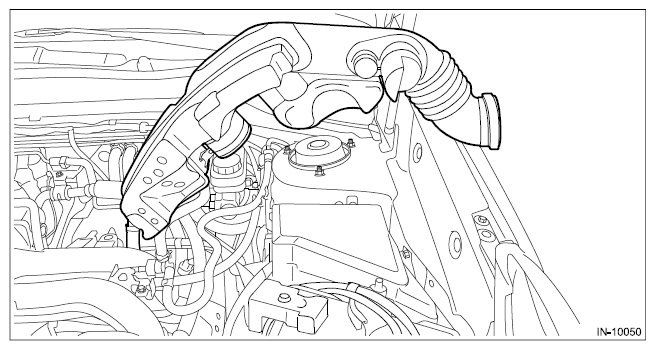

  5. Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.
    G12505366Courtesy of SUBARU OF AMERICA, INC.

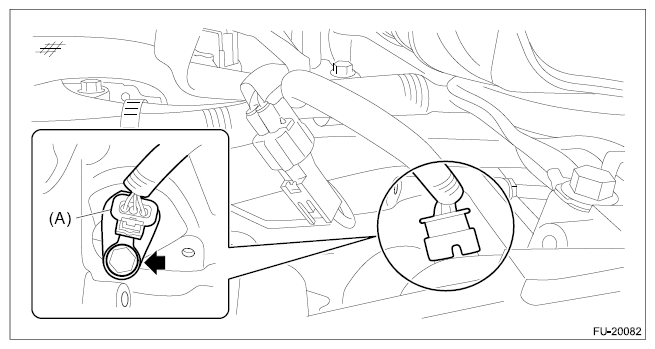

  6. Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.
    G12505367Courtesy of SUBARU OF AMERICA, INC.
