Electronic Throttle Control Relay: Removal
- Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
- Remove the instrument panel lower cover. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

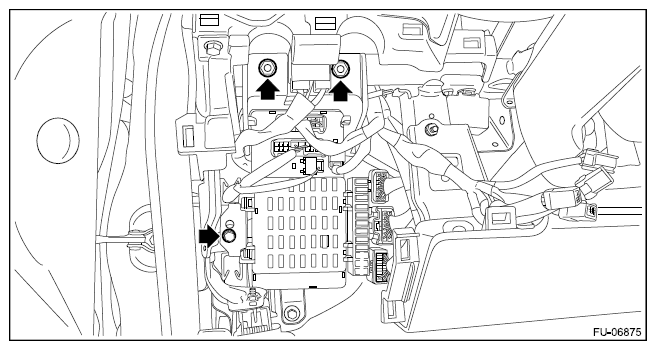

- Remove the bolts and nuts securing the fuse block and move down the fuse block.

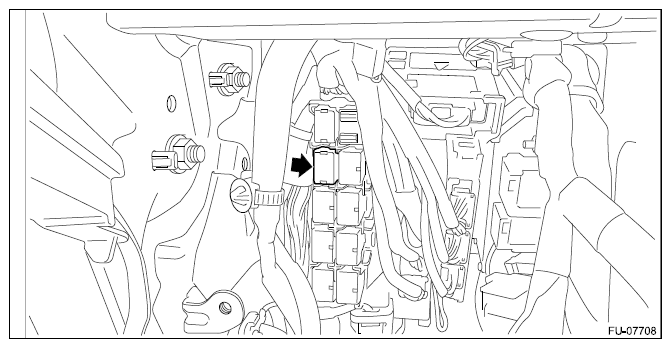

- Remove the electronic throttle control relay from the relay block.
