Engine Control Module (ECM): Installation

CAUTION:

When the ECM of model with immobilizer has been replaced, be sure to perform the registration of immobilizer system.
- For model without keyless access with push button start, refer to the Type B in "REGISTRATION MANUAL FOR IMMOBILIZER".
- For model with keyless access with push button start, refer to the Type D in "REGISTRATION MANUAL FOR IMMOBILIZER".
When the ECM has been replaced, be sure to perform the registration of VIN. Refer to OPERATION .

NOTE: When replacing the ECM, be careful not to use the ECM of wrong specification to avoid any damage on the fuel injection system.

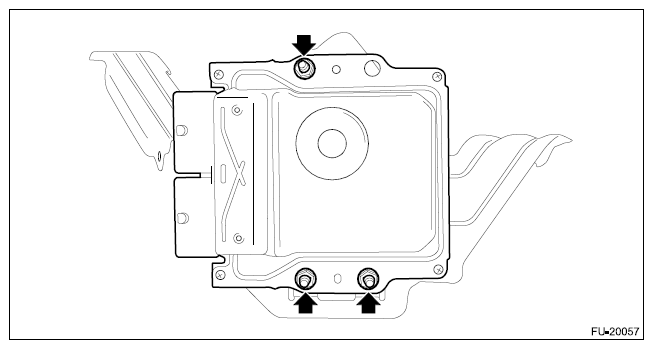

Install the bracket to ECM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5. ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

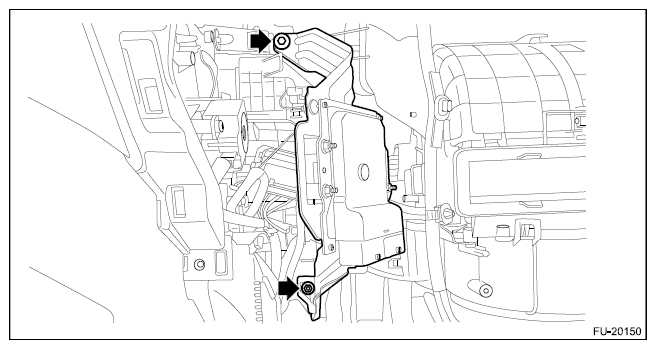

Install ECM to the vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5. ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

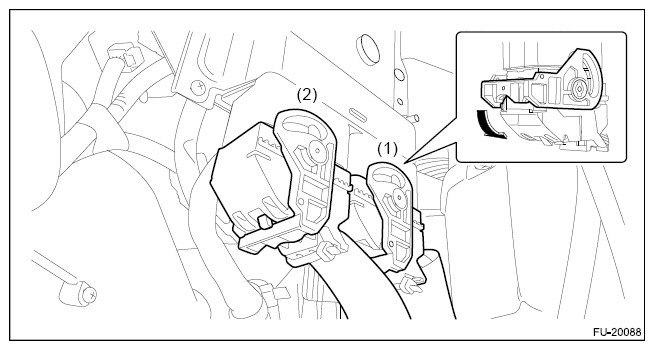

Move the lock lever in the direction of the arrow, and connect the bulkhead harness connector to the ECM in numerical order as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.
Install the relay block.
Install the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
