Fuel Filler Pipe: Assembly
Assemble in the reverse order of disassembly.
NOTE:
- Use a new neck holder.

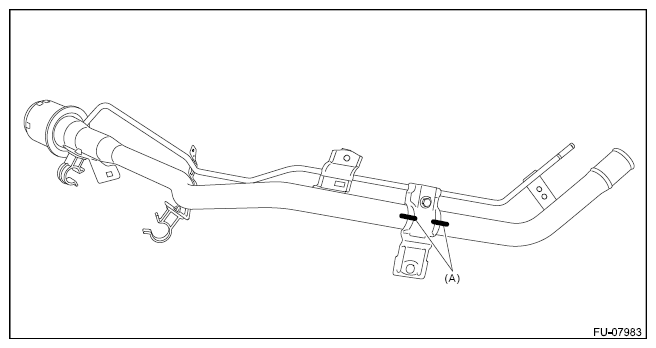

- Install the bracket to the fuel filler pipe by aligning the alignment marks (A).
 Courtesy of SUBARU OF AMERICA, INC.
|
Tightening torque:
7.5 N.m (0.8 kgf-m, 5. ft-lb)
