Fuel Filler Pipe: Disassembly

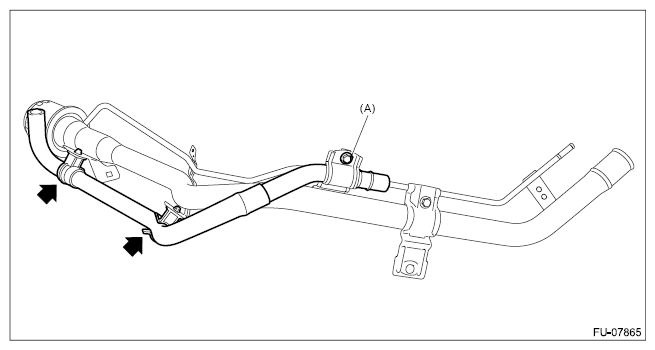

Remove the bracket bolt (A) securing the drain pipe, and remove the drain hose from the clip for the fuel filler pipe.

Courtesy of SUBARU OF AMERICA, INC.

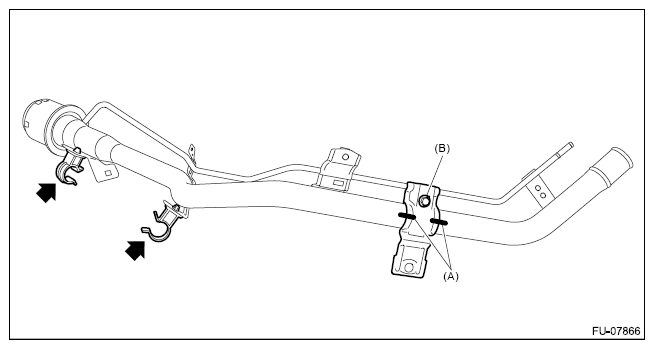

Using a marker pen, make alignment marks (A) on the fuel filler pipe and the bracket.
Remove the bracket bolt (B) securing the fuel filler pipe, and remove the clip from the fuel filler pipe.

Courtesy of SUBARU OF AMERICA, INC.

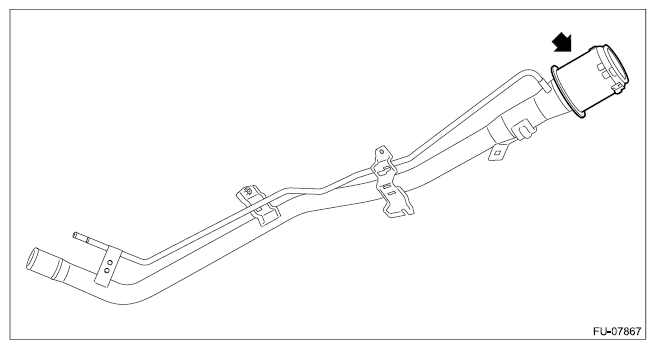

Remove the neck holder from the fuel filler pipe.

Courtesy of SUBARU OF AMERICA, INC.
