Fuel Tank: Installation

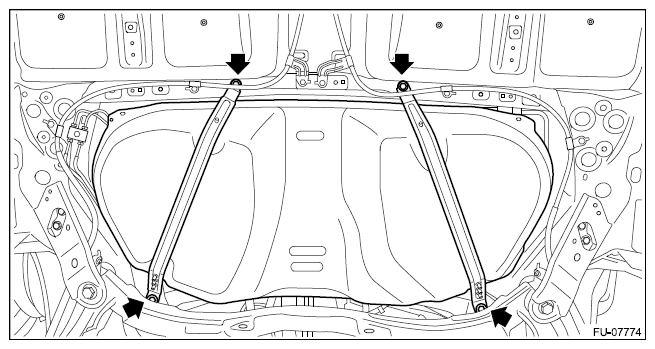

  1. Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
    WARNING: A helper is required to perform this work.
    G12505449Courtesy of SUBARU OF AMERICA, INC.

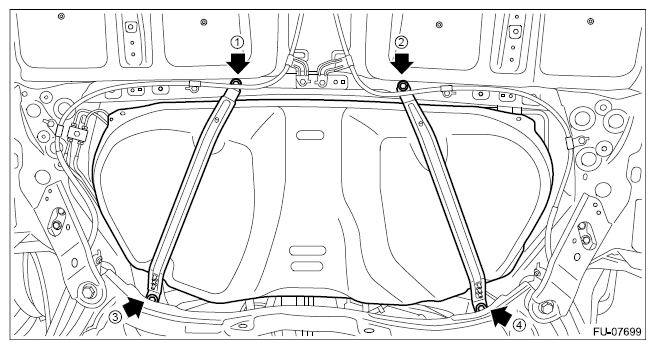

  2. Tighten the bolts of the fuel tank band in the order shown in the figure.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

    G12505450Courtesy of SUBARU OF AMERICA, INC.

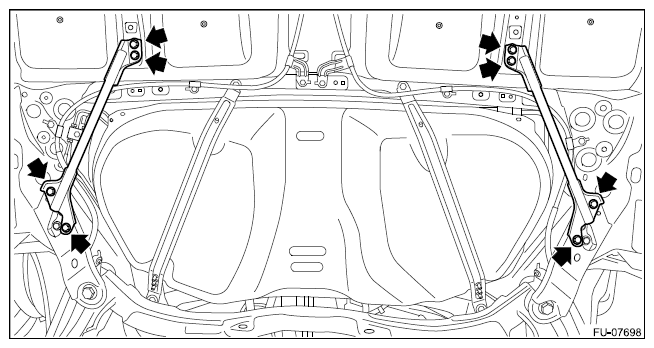

  3. Install the stay - rear frame COMPL.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

    G12505451Courtesy of SUBARU OF AMERICA, INC.

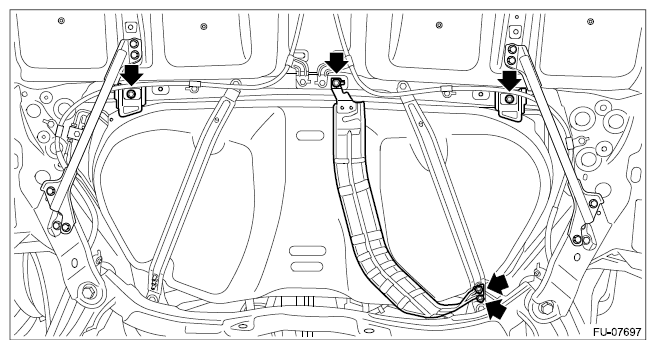

  4. Install the heat shield cover and stopper.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G12505452Courtesy of SUBARU OF AMERICA, INC.
  5. Install the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank Protector>INSTALLATION .

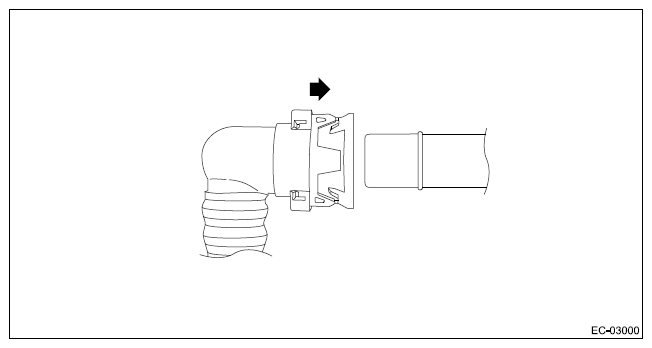

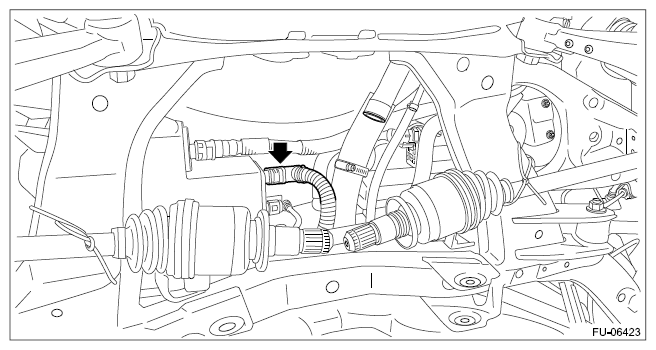

  6. Connect the vent tube to the canister.
    CAUTION:
    • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
    • Make sure that the quick connector is securely connected.
    NOTE: Connect the quick connector as shown in the figure.
    G12505453Courtesy of SUBARU OF AMERICA, INC.
    G12505454Courtesy of SUBARU OF AMERICA, INC.

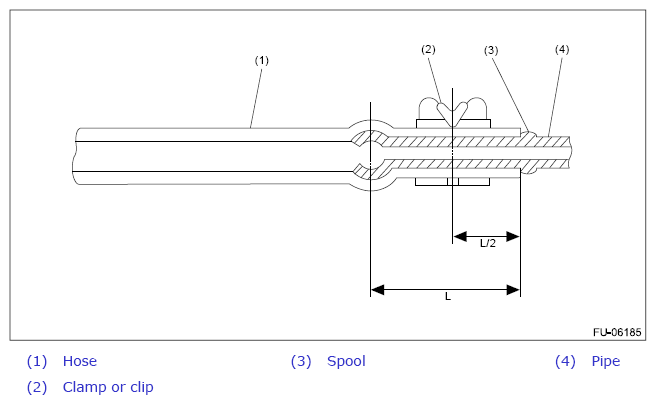

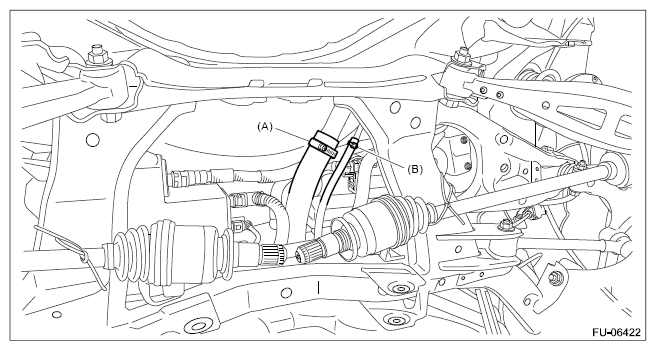

  7. Securely insert the fuel filler hose (A) and evaporation hose (B) until the hose end contacts the spool, then attach the clamp or clip as shown in the figure.

    Tightening torque:

    2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

    G12505455Courtesy of SUBARU OF AMERICA, INC.
    G12505456Courtesy of SUBARU OF AMERICA, INC.
  8. Install the rear differential. Ref. to DIFFERENTIALS>Rear Differential (T-type)>INSTALLATION . Ref. to DIFFERENTIALS>Rear Differential (VA-type)>INSTALLATION .
  9. Install the rear exhaust pipe and muffler. Ref. to EXHAUST (H4DO)>Rear Exhaust Pipe>INSTALLATION . Ref. to EXHAUST (H4DO)>Muffler>INSTALLATION .

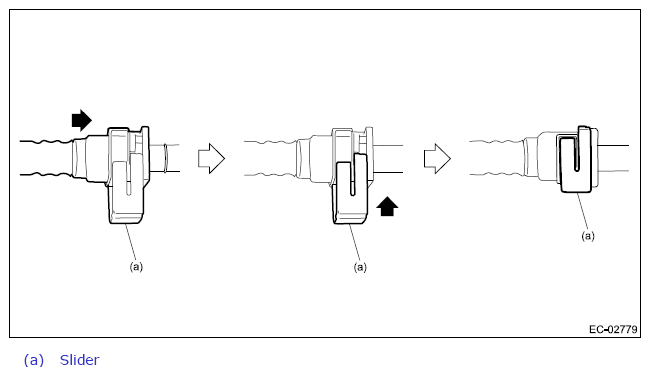

  10. Connect the quick connector of the fuel delivery tube.
    CAUTION:
    • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
    • When connecting the quick connector, make sure to insert it all the way in before locking the slider.
    • When it is difficult to lock the slider, check that the connector is fully inserted.
    • After locking the slider, check that the quick connector is securely connected.
    NOTE: Connect the quick connector as shown in the figure.
    G12505457Courtesy of SUBARU OF AMERICA, INC.

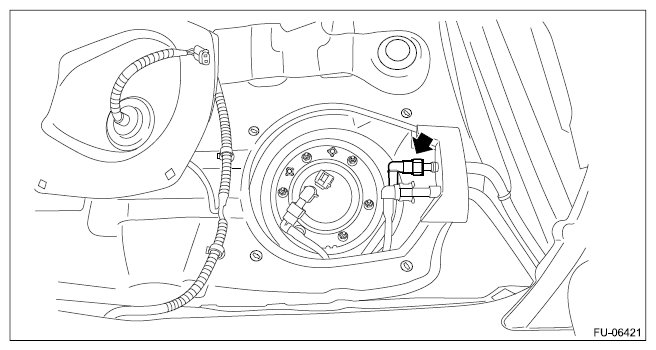

    G12505458Courtesy of SUBARU OF AMERICA, INC.

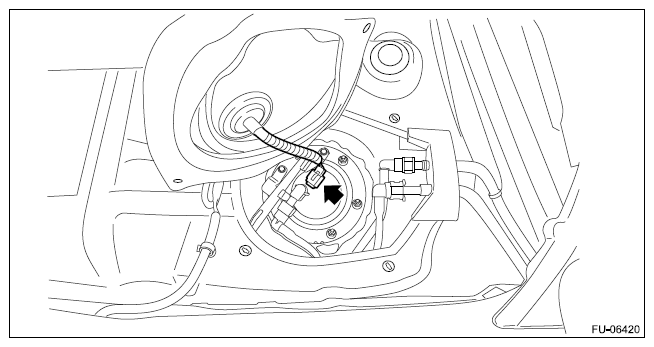

  11. Connect the connector to the fuel sub level sensor.
    G12505459Courtesy of SUBARU OF AMERICA, INC.

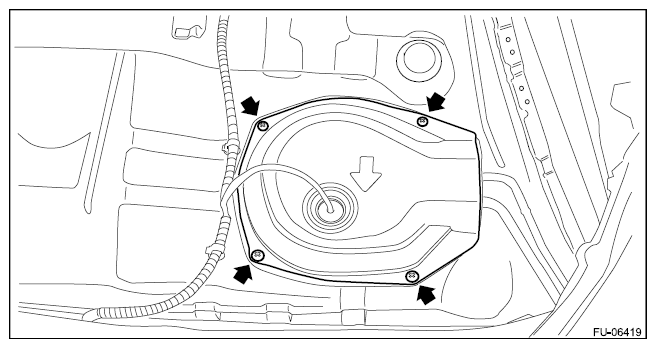

  12. Install the service hole cover of fuel sub level sensor.
    G12505460Courtesy of SUBARU OF AMERICA, INC.

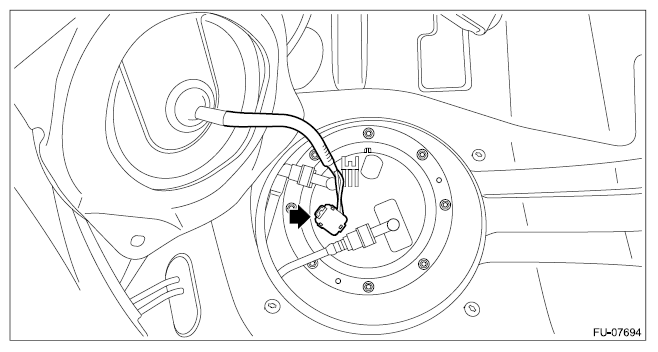

  13. Connect the connector to the fuel pump.
    G12505461Courtesy of SUBARU OF AMERICA, INC.

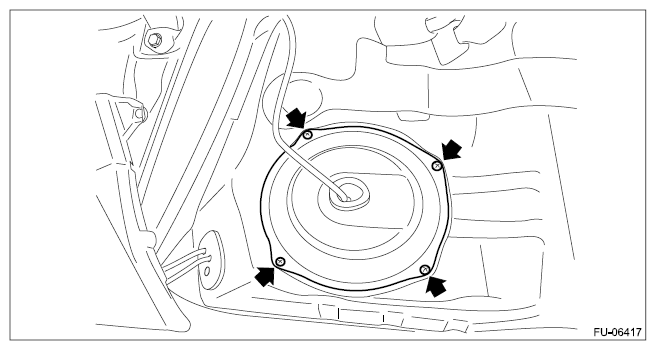

  14. Install the service hole cover of fuel pump.
    G12505462Courtesy of SUBARU OF AMERICA, INC.
  15. Install the rear seat cushion. Ref. to SEATS>Rear Seat>INSTALLATION .
  16. Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
