Fuel Tank: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the tubes using a container or cloth.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Drain fuel. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  3. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  4. Remove the rear seat cushion. Ref. to SEATS>REAR SEAT>REMOVAL .

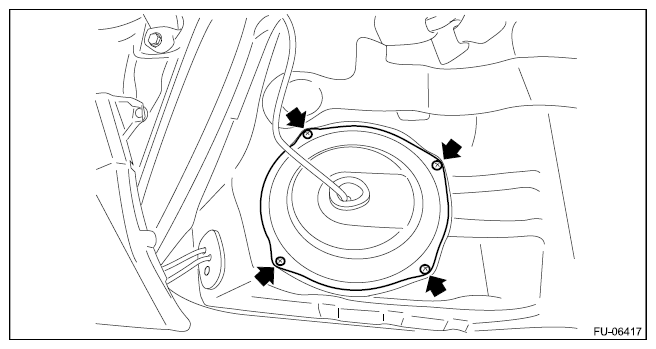

  5. Remove the service hole cover of fuel pump.
    G12505437Courtesy of SUBARU OF AMERICA, INC.

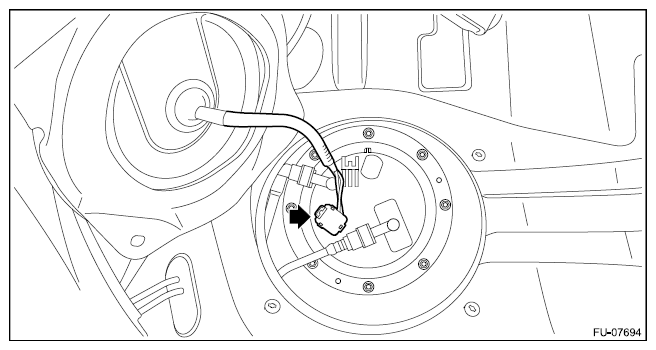

  6. Disconnect connectors from the fuel pump, and move aside the service hole cover.
    G12505438Courtesy of SUBARU OF AMERICA, INC.

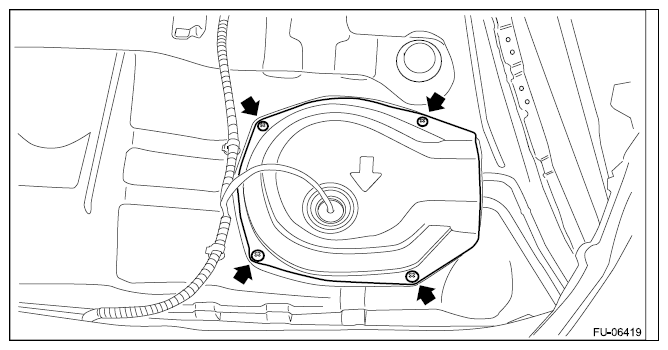

  7. Remove the service hole cover of fuel sub level sensor.
    G12505439Courtesy of SUBARU OF AMERICA, INC.

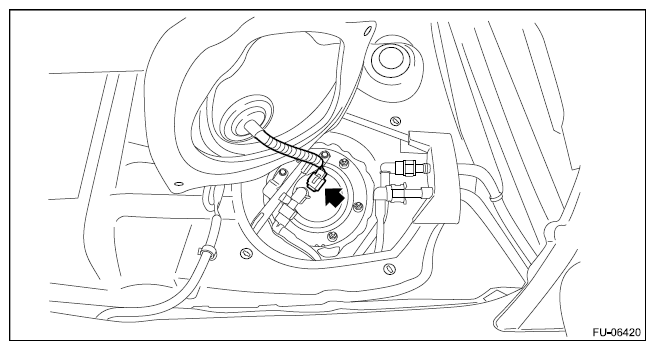

  8. Disconnect the connector from the fuel sub level sensor, and move aside the service hole cover.
    G12505440Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the quick connector on the fuel delivery tube.

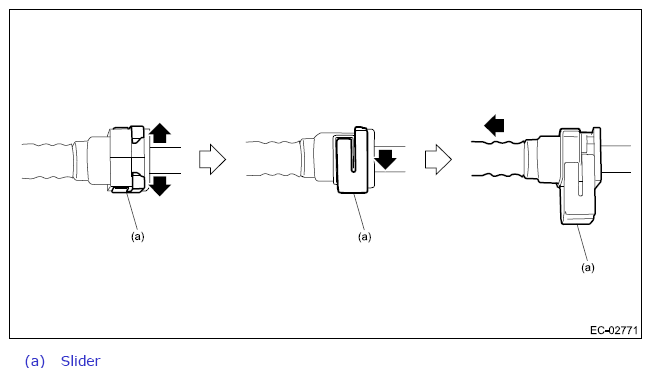

    NOTE: Disconnect the quick connector as shown in the figure.

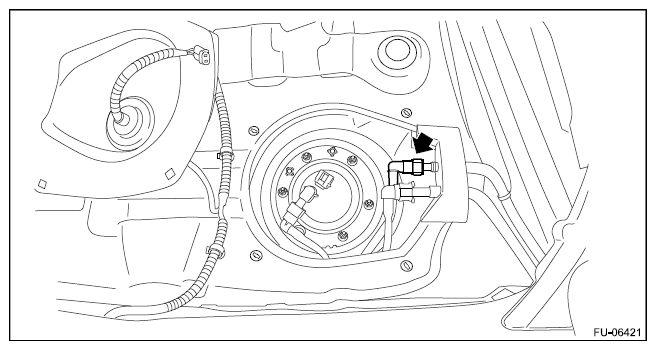

    G12505441Courtesy of SUBARU OF AMERICA, INC.
    G12505442Courtesy of SUBARU OF AMERICA, INC.
  10. Lift up the vehicle.
  11. Remove the rear exhaust pipe and muffler. Ref. to EXHAUST (H4DO)>Rear Exhaust Pipe>REMOVAL . Ref. to EXHAUST (H4DO)>Muffler>REMOVAL .
  12. Remove the rear differential. Ref. to DIFFERENTIALS>Rear Differential (T-type)>REMOVAL . Ref. to DIFFERENTIALS>Rear Differential (VA-type)>REMOVAL .

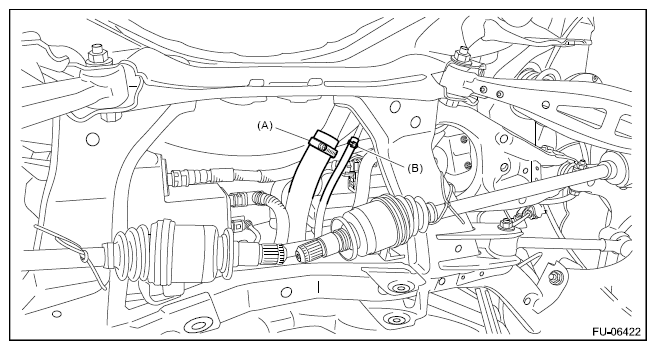

  13. Disconnect fuel filler hose (A) and air vent hose (B) from the fuel filler pipe assembly.
    G12505443Courtesy of SUBARU OF AMERICA, INC.
  14. Disconnect the vent tube from canister.

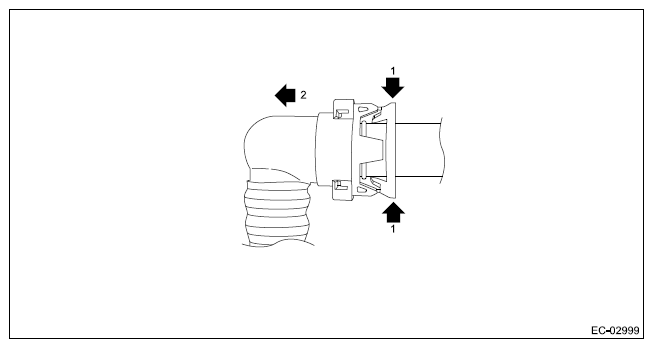

    NOTE: Disconnect the quick connector as shown in the figure.

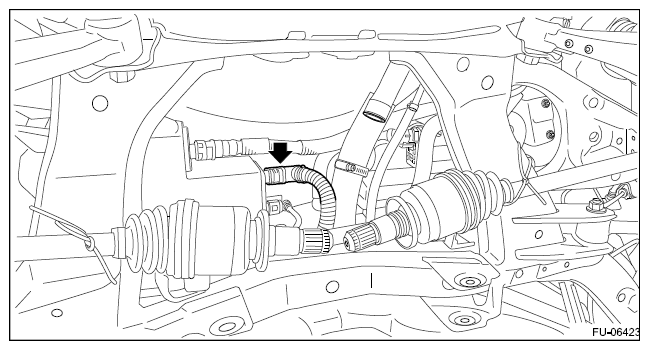

    G12505444Courtesy of SUBARU OF AMERICA, INC.
    G12505445Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank Protector>REMOVAL .

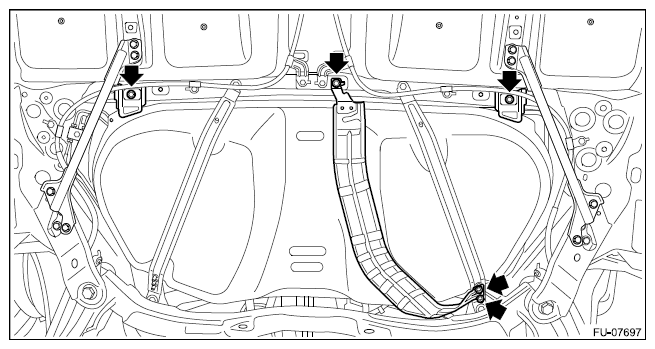

  16. Remove the heat shield cover and stopper.
    G12505446Courtesy of SUBARU OF AMERICA, INC.

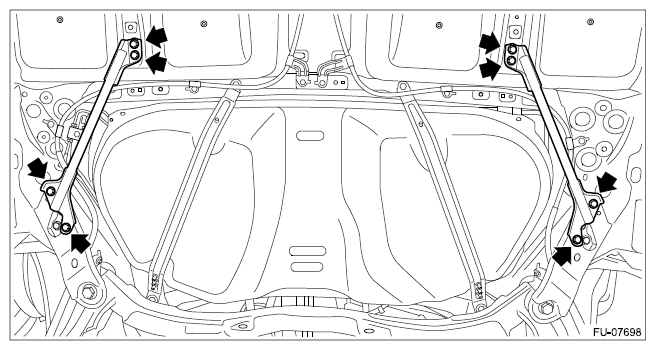

  17. Remove the stay - rear frame COMPL.
    G12505447Courtesy of SUBARU OF AMERICA, INC.

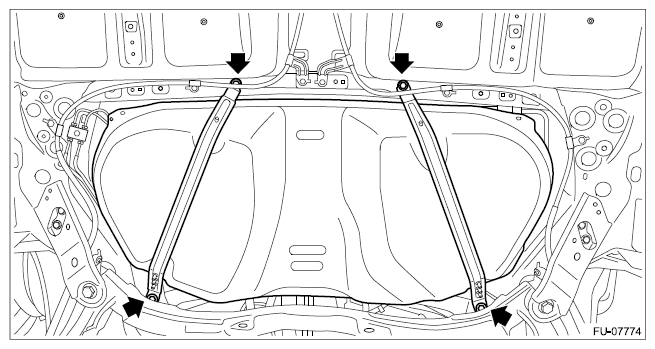

  18. Support the fuel tank with a transmission jack, remove the bolts from the fuel tank band, and remove the fuel tank from the vehicle.
    WARNING:
    • A helper is required to perform this work.
    • Fuel may remain in the fuel tank. This will cause the left and right sides to be unbalanced. Be careful not to drop the fuel tank.
    G12505448Courtesy of SUBARU OF AMERICA, INC.
