Fuel Tank

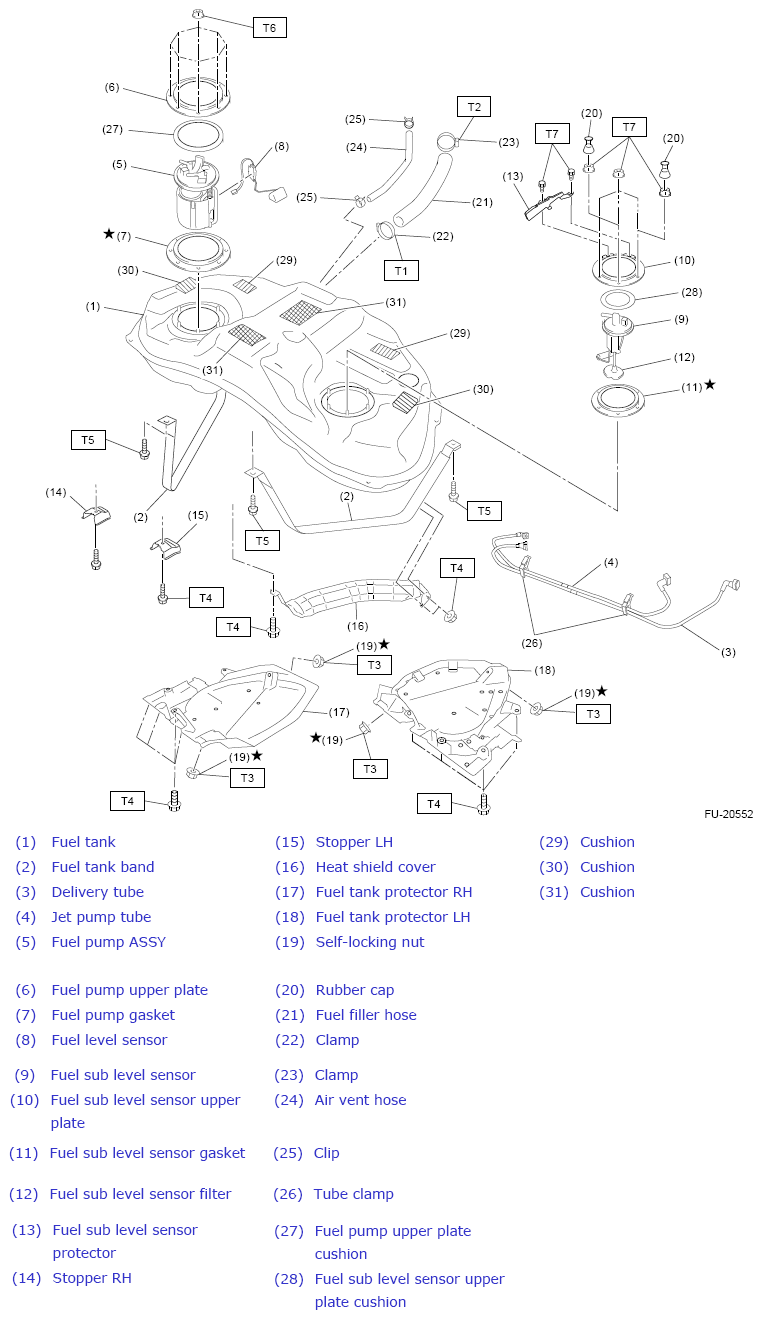

Fig 1: Fuel Tank Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 2.5 (0.3, 1.8)

T3: 9 (0.9, 6.6)

T4: 18 (1.8, 13.3)

T5: Ref. to  FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank>INSTALLATION  .

T6: Ref. to  FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump>INSTALLATION  .

T7: Ref. to  FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Sub Level Sensor>INSTALLATION  .
