Intake Manifold Assembly 1

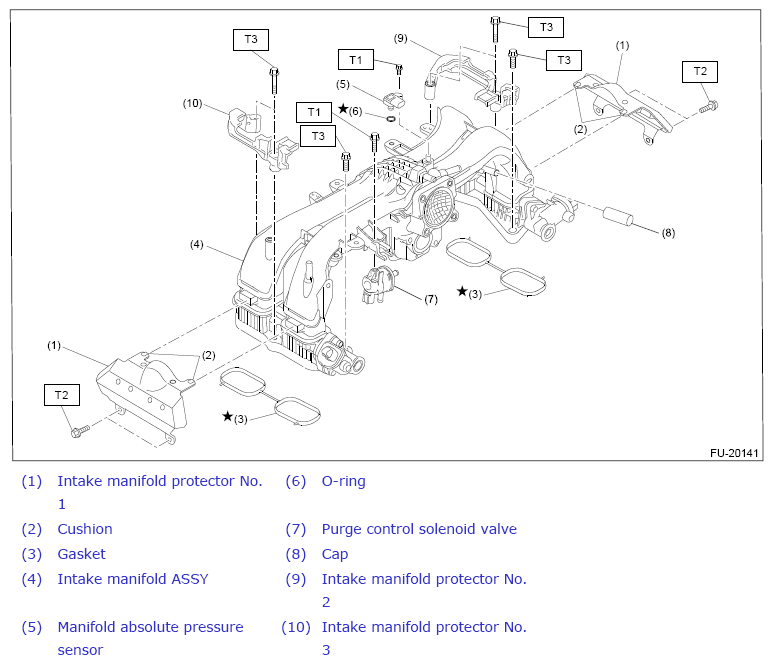

Fig 1: Intake Manifold Assembly 1 Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
