Main Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .

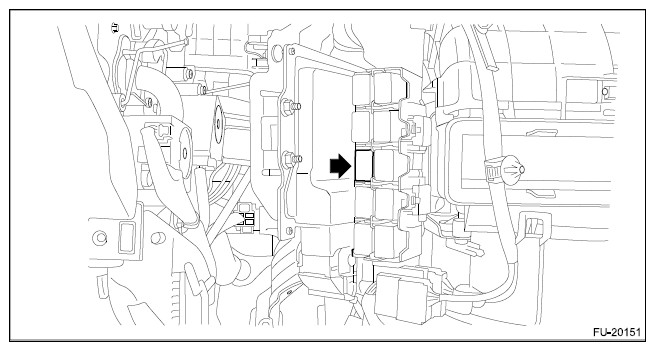

  3. Remove the main relay from relay block.
    G12505418Courtesy of SUBARU OF AMERICA, INC.
